Machine tools and equipment / Metalworking machine tools / CNC machining centers / 5-Axis CNC Machining Center / 5-Axis CNC Machining Center U500
PRIMINER

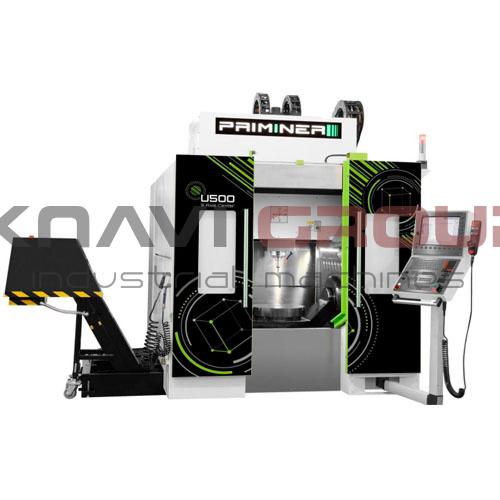

5-Axis CNC Machining Center U500

Working table size 500mm
Max. weight of workpiece 500kg
Feed travels 700mm / 650mm / 450mm
A-axis Tilting Angle -110° ~ 30°
Rotation range of C-axis 360°

Цена и условия

Цена по запросу

Характеристики

Working table

Working table size 500mm
T-slots 5pcs / 80mm
Max. weight of workpiece 500kg

Feeds

Feed travels 700mm / 650mm / 450mm
A-axis Tilting Angle -110° ~ 30°
Rotation range of C-axis 360°
Max. speed of traverse feeds 12000mm/min / 12000mm/min / 12000mm/min
Rapid traverse 36000mm/min / 36000mm/min / 36000mm/min / 100rpm / 170mm/min

Spindle

Spindle speeds range 20000rpm
Spindle taper HSK A63
Distance from vertical spindle nose to surface of working table 110mm / 560mm
Spindle motor power 20kW / 24kW

Accuracy

Positioning accuracy 0.006mm / 0.006mm / 0.006mm / 4'' / 4' / 3'' / 3'
Repeatability accuracy 0.003mm / 0.003mm / 0.003mm / 2.5'' / 2''

Automatic tool changer (ATC)

Tool magazine type Chain-type tool magazine
Tool magazine capacity 32pcs
Max. tool diameter 63mm
Max. tool lenght 250mm
Max. tool weight 4kg

CNC

CNC model HEIDENHAIN TNC640

Cutting fluid

Water tank capacity 195L

Engines and power supply

Compressed Air Supply 0.7MPa х 250l/min
Voltage 380V / 50Hz / Three phase / AC

Overall dimensions and weight

Weight 10000kg
Overall length 3560mm
Overall width 3380mm
Overall height 2995mm
