YORNEW

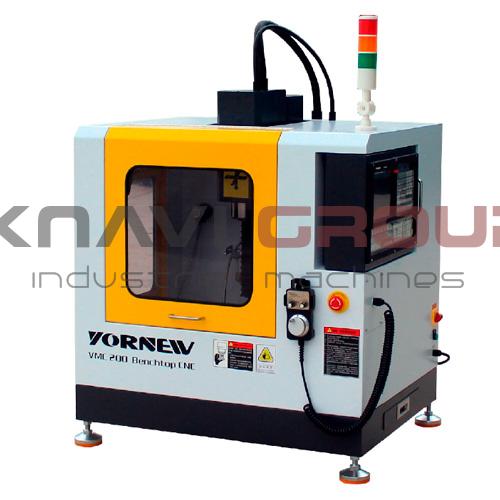

Desktop 3 Axis CNC Machine Center VMC200

Type Bench type

Working table size 460mm x 130mm

Spindle speeds range 100rpm — 24000rpm

Spindle taper ISO20

Tool magazine capacity 5pcs

Feed travels 220mm / 120mm / 200mm

Основная конфигурация

Model

KY1000MC

Siemens 808D

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

Type Bench type

Working table

Working table size 460mm x 130mm

T-slots 3pcs / 12mm / Cast iron

Spindle

Spindle speeds range 100rpm — 24000rpm

Spindle taper ISO20

Spindle motor power

1.5kW

2.2kW

Accuracy

Positioning accuracy 0.02mm / 0.02mm / 0.02mm

Repeatability accuracy 0.01mm / 0.01mm / 0.01mm

Automatic tool changer (ATC)

Tool magazine type Drum-type tool magazine

Tool magazine capacity 5pcs

Max. tool diameter 13mm

Feeds

Feed travels 220mm / 120mm / 200mm

Max. speed of traverse feeds 1000mm/min / 1000mm/min / 1000mm/min

Rapid traverse 2000mm/min / 2000mm/min / 2000mm/min

X/Y guideways type Box guideway

Z-axis guideway type Box guideway

X-axis transmission type Ball screw

Y-axis transmission type Ball screw

Z-axis transmission type Ball screw

CNC

Model

KY1000MC

Siemens 808D

Engines and power supply

Compressed Air Supply 0.6MPa

Other

Lubrication system Semi-automatic

Splash guard cover Full splash guard

Overall dimensions and weight

Weight 180kg

Overall length 900mm

Overall width 680mm

Overall height 1000mm
