SMTCL

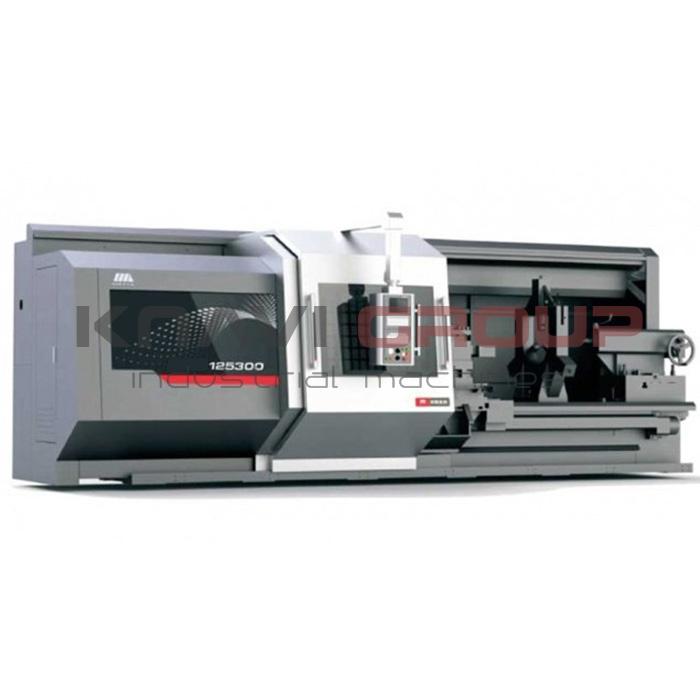

Horizontal CNC lathe HTC125300

CNC lathe type Flat-bed CNC lathe

Max. swing diameter over bed 1250mm

Max. swing over cross slide: 850mm

Max. weight of workpiece 5000kg

Spindle motor power 22kW

Цена и условия

13 547 863 RUB*

Условия доставки

ddp Москва

* Цена рассчитана на основе конфигурации оборудования, периферии, комплектации и города доставки — Москва. Стоимость товара и условия продажи не являются публичной офертой.

Характеристики

Basic feauturies

CNC lathe type Flat-bed CNC lathe

Capability

Max. swing diameter over bed 1250mm

Max. swing over cross slide: 850mm

Distance between centers 3000mm

Processing length 3000mm

Max. weight of workpiece 5000kg

Headstock

Spindle speeds range 5rpm — 500rpm

Spindle speed steps ranges Stepless-type / 3pcs

Gear shifting Manual gear-change

Spindle taper Metric #140

Lathe Spindle Nose A2-15

Spindle bore diameter 130mm

Spindle torque 7500N⋅m

Spindle motor power 22kW

Lathe chuck

Chuck size 1000mm

Clamping type Mechanical

Chuck 4-jaws chuck

Feeds

Rapid traverse 6000mm/min / 5000mm/min

Positioning accuracy 0.014mm / 0.032mm

Repeatability accuracy 0.006mm / 0.016mm

Carriage

Tool post 4-station turret toolpost / Vertical

Number of stations 4pcs

Axis of revolution Vertical axis

Processing length 3000mm

Indexing time 6sec.

Tool shank 40mm x 40mm

Tailstock

Tailstock Manual

Max. travel of tailstock quill 300mm

Tailstock quill diameter 160mm

Taper MT6

CNC

Model Sinumerik 828d

Other

Accuracy class index IT6~IT7

Best surface roughness 1.6μm/Ra

Overall dimensions and weight

Weight 13000kg

Overall length 6500mm

Overall width 2725mm

Overall height 2450mm
