Basic feauturies
Linear axis number
5pcs / X1 / X2 / Y1 / Z1 / Z2
Total tools quantity
12pcs / 6pcs / 18pcs
Modification

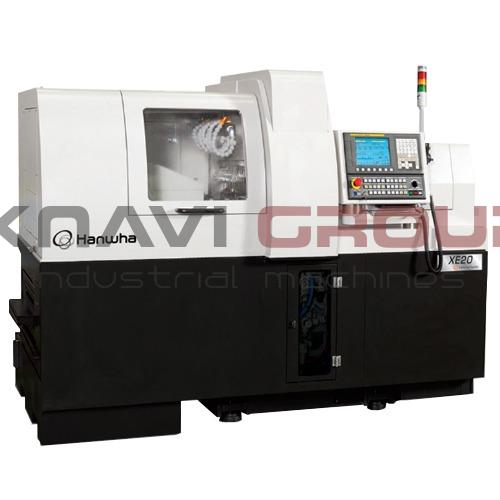

Dual spindles swiss-type lathe
CNC
Fanuc 0i-TF Plus
Processing parameters
Machining range diameter (spindle/subspindle)
26mm / 26mm
Max. processing length
160mm / Removable Rotary Guide Bush
Main spindle
Spindle drive
Direct drive
Spindle cooling
Oil cooling
Spindle speeds range
8000rpm
Spindle bore diameter
30mm
C axis
0.001°
Motor power
2.2kW / 5.5kW
Back spindle
Spindle drive
Direct drive
Spindle speeds range
8000rpm
Spindle bore diameter
31mm
C axis
0.001°
Motor power
1.5kW / 2.2kW
Cross driven tools main spindle
Cross driven tools
4pcs / ER16 / 6000rpm
Max. drilling diameter
10mm
Tapping capacity
M8
Slotting size
1.5mm x 4.0mm
Motor power
1kW
Main spindle O.D. turning tools
Tool seat arrangement
Upside tool holder
Tool number
5pcs
Tool Size
16mm x 16mm x 85mm
Main spindle end face tools
End-face fixed tools
5pcs / ER16 / 25mm
Max. drilling diameter
10mm
Tapping capacity
M8
Sub-spindle end face tools
End-face driven tools
2pcs / ER16 / 6000rpm
End-face fixed tools
2pcs / ER16
Max. drilling diameter
10mm
Tapping capacity
M8
Motor power
1kW
Linear axes
Rapid traverse
24m/min / 32m/min / 32m/min / 32m/min / 32m/min
Other
Water tank capacity
170L
Power of coolant pump motor
0.4kW
Lubrication tank capacity
1.8L
Lubricatingoil pump power
0.005kW
Overall dimensions and weight
Weight
2500kg
Overall length
2260mm
Overall width
1240mm
Overall height
1670mm
