Basic feauturies
Linear axis number
5pcs / X1 / X2 / Y1 / Z1 / Z2
Total tools quantity
13pcs / 4pcs / 17pcs
Modification

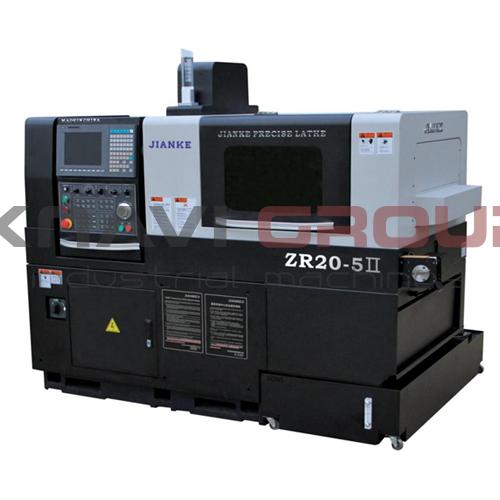

Dual spindles swiss-type lathe
Processing parameters
Machining range diameter (spindle/subspindle)
20mm / 20mm
Max. processing length
90mm / Replaceable fixed guide bushing
Main spindle
Spindle drive
Direct drive
Spindle cooling
Oil cooling
Spindle speeds range
10000rpm
Spindle bore diameter
22mm
C axis
0.001°
Max. drilling diameter
10mm
Tapping capacity
M8
Motor power
2.2kW / 3.5kW
Back spindle
Spindle drive
Direct drive
Spindle cooling
Oil cooling
Spindle speeds range
10000rpm
Spindle bore diameter
22mm
C axis
0.001°
Max. drilling diameter
8mm
Tapping capacity
M6
Motor power
2.2kW / 3.5kW
Cross driven tools main spindle
Cross driven tools
2pcs / ER11 / 6000rpm
Cross driven tools
2pcs / ER16 / 6000rpm
Max. drilling diameter
8mm
Tapping capacity
M6
Motor power
1kW
Main spindle O.D. turning tools
Tool seat arrangement
Side offset tool holder
Tool number
5pcs
Tool Size
12mm x 12mm
Main spindle end face tools
End-face fixed tools
4pcs / ER11 / ER16
Sub-spindle end face tools
End-face fixed tools
4pcs / ER11 / ER16
Linear axes
Rapid traverse
24m/min / 28m/min / 24m/min / 28m/min / 28m/min
Axis drive motor power
1kW
Other
Water tank capacity
155L
Overall dimensions and weight
Weight
2540kg
Overall length
2200mm
Overall width
1450mm
Overall height
1690mm
