Basic feauturies
Linear axis number
6pcs / X1 / X2 / Y1 / Y2 / Z1 / Z2
Total tools quantity
15pcs / 19pcs / 34pcs
Modification

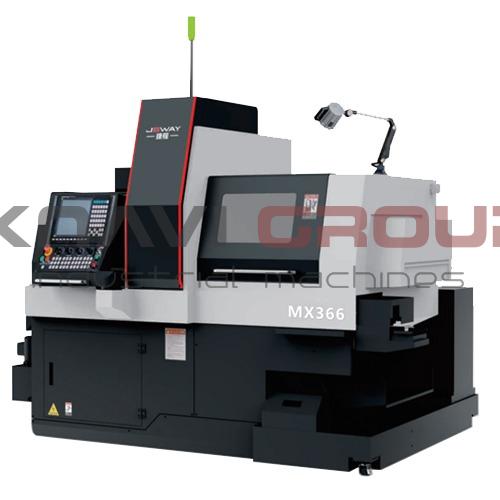

Dual spindles swiss-type lathe
CNC
Fanuc 0i-TF Plus
Syntec 220TB
Processing parameters
Machining range diameter (spindle/subspindle)
35mm / 35mm
Max. processing length
220mm
Main spindle
Spindle drive
Direct drive
Spindle cooling
Oil cooling
Spindle speeds range
6000rpm
Spindle bore diameter
36mm
C axis
0.001°
Max. drilling diameter
10mm
Tapping capacity
M8
Motor power
11kW
Back spindle
Spindle drive
Direct drive
Spindle cooling
Oil cooling
Spindle speeds range
6000rpm
Spindle bore diameter
35mm
C axis
0.001°
Max. drilling diameter
10mm
Tapping capacity
M8
Motor power
11kW
Cross driven tools main spindle
Cross driven tools
2pcs / ER20 / 5500rpm
Cross driven tools
3pcs / ER16 / 5500rpm
Max. drilling diameter
12mm
Tapping capacity
M10
Motor power
1kW
Cross driven tools sub spindle
Cross driven tools
3pcs / ER16 / 5500rpm
Main spindle O.D. turning tools
Tool seat arrangement
Side offset tool holder
Tool number
6pcs
Tool Size
16mm x 16mm
Main spindle end face tools
End-face driven tools
3pcs / ER16
End-face fixed tools
5pcs / ER16
Sub-spindle end face tools
End-face driven tools
8pcs / ER16
End-face fixed tools
4pcs / ER16
Linear axes
Rapid traverse
20m/min / 32m/min / 32m/min / 32m/min / 32m/min / 32m/min
Axis drive motor power
1.2kW / 1.2kW / 1.8kW / 1.2kW / 1.2kW / 1.2kW
Overall dimensions and weight
Weight
3800kg
Overall length
2472mm
Overall width
1930mm
Overall height
2501mm
