BLIN

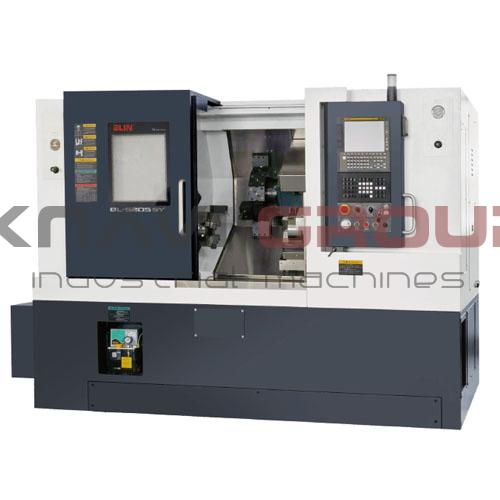

Turning center BL-S205SY

CNC lathe type Slant-bed CNC lathe / 30°

Max. swing diameter over bed 700mm

Max. swing over cross slide: 200mm

Processing length 530mm

Цена и условия

11 681 086 RUB*

Условия доставки

ddp Москва

* Цена рассчитана на основе конфигурации оборудования, периферии, комплектации и города доставки — Москва. Стоимость товара и условия продажи не являются публичной офертой.

Характеристики

Basic feauturies

CNC lathe type Slant-bed CNC lathe / 30°

Capability

Max. swing diameter over bed 700mm

Max. swing over cross slide: 200mm

Processing length 530mm

Back spindle

Spindle speeds range 5000rpm

Lathe Spindle Nose A2-5

Spindle bore diameter 56mm

Bar Size 44mm

Spindle motor power 12.5kW

Feeds

X-Axis travel 185mm

Z-Axis travel 550mm

Y-Axis travel 50mm

Rapid traverse 30000mm/min / 12000mm/min / 30000mm/min

Positioning accuracy 0.005mm / 0.008mm

Repeatability accuracy 0.002mm / 0.004mm

Carriage

Tool post Lathe turret

Number of stations 12pcs

Tools

Tooling Live tooling

Tool holder interface BMT55

Tool shank 25mm x 25mm

Tool shank diameter 40mm

Motor power 4.5kW

Live tooling speed 6000rpm

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC

Overall dimensions and weight

Weight 4500kg

Overall length 2690mm

Overall width 1810mm

Overall height 1850mm
