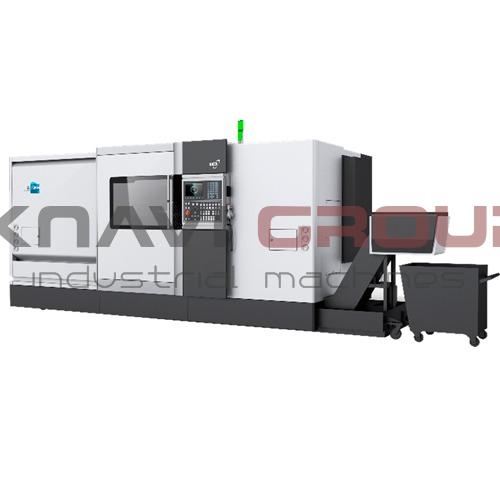

Turning center DL-32MH

Серия: DL-MH
Tooling Live tooling

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

CNC lathe type Slant-bed CNC lathe / 45° / Combo lathe mill

Capability

Max. swing diameter over bed 680mm
Max. swing over cross slide: 440mm
Distance between centers
1000mm
1500mm
2000mm
3000mm
Processing length
950mm
1450mm
1950mm
2950mm

Back spindle

Spindle motor power
22kW / 30kW
21.2kW

Feeds

X-Axis travel 375mm
X-axis transmission type Ball screw / Ø 50mm
Z-axis transmission type Ball screw / Ø 50mm
Max. speed of traverse feeds 9000mm/min / 9000mm/min
Rapid traverse 12000mm/min / 16000mm/min
Z-Axis travel
1020mm
1520mm
2020mm
3020mm
Positioning accuracy
0.011mm / 0.018mm / 44'' / 44'
0.011mm / 0.021mm / 44'' / 44'
0.011mm / 0.021mm / 44'' / 44'
0.011mm / 0.021mm / 44'' / 44'
Repeatability accuracy
0.007mm / 0.008mm / 18''
0.007mm / 0.008mm / 18''
0.007mm / 0.008mm / 18''
0.007mm / 0.01mm / 18''

Feed motor

Feeding motor model
aiF22B/3000 / aiF30/4000
1FK2208-5AC11-0MB0 / 1FK2210-3AC01-0MB0
Power of feed motors
4kW / 7kW
4kW / 4.5kW
Torque of axis-drive motors
22N⋅m / 30N⋅m
27N⋅m / 30N⋅m

Carriage

Tool post Lathe turret
Tool сhanging time (Adjacent/Farthest) 0.94sec. / 1.33sec.

Tools

Tooling Live tooling
Tools quantity 12pcs
Tool shank 32mm x 25mm
Tool shank diameter 50mm
Motor power 5.5kW / 7.5kW
Live tooling speed 5000rpm
Max. drilling diameter 20mm / 0.2mm
Tapping capacity M16×2
Milling capacity 14mm x 25mm x 40mm/min

Tailstock

Tailstock Hydraulic
Max. travel of tailstock quill 180mm
Tailstock quill diameter 160mm
Morse cone MT5
Tailstock stroke
1000mm
1438mm
1838mm
2638mm

Cutting fluid

Power of coolant pump motor 0.37kW
Tank capacity
600L
650L
700L
850L

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC

Lubrication system

Lubrication system Full-automatic
Lubricatingoil pump power 0.25kW
Required oil #T68 / Guide rail oil

Hydraulic system

Motor power of hydraulic station 3kW
Hydraulic Tank Capacity 52L
Max. pump pressure 4MPa
Required oil #32 / Hydraulic oil

Overall dimensions and weight

Weight 11000kg
Overall length 5962mm
Overall width 2095mm
Overall height 2215mm

Периферия

Power lathe chucks

DL-32_15'' solid chuck (DMTG)
DL-32_15'' solid chuck (DMTG)
DL-32_15'' hollow Пустот (DMTG)
DL-32_15'' hollow Пустот (DMTG)
DL-32_18'' hollow (DMTG)
DL-32_18'' hollow (DMTG)
DL-32_18'' hollow (DMTG)
DL-32_18'' hollow (DMTG)
