Basic feauturies

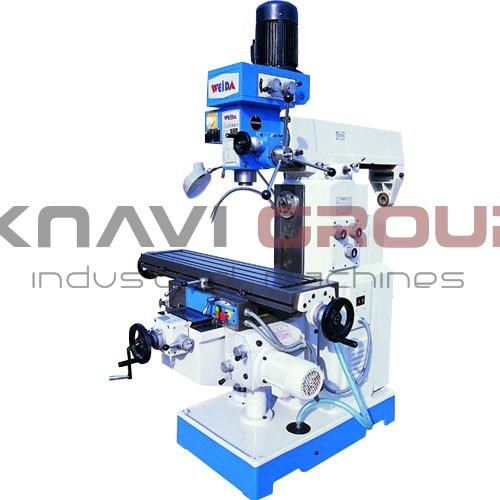

Milling machine variation
Universal
Milling
Horizontal / Vertical
Capability
Max. drilling diameter
20mm / 30mm
Tapping capacity
M16
Milling width
100mm
Horizontal worktable
Working table size
1120mm x 260mm
T-slots
3pcs / 14mm / 63mm
Max. weight of workpiece
250kg
Tilting angle (forward/backward)
45°
Vertical worktable
Working table size
1120mm x 260mm
T-slots
3pcs / 14mm / 63mm
Max. weight of workpiece
250kg
Vertical spindle
Spindle speeds range
115rpm — 1750rpm
Spindle speed steps ranges
8pcs
Spindle taper
ISO40
Travel of spindle quill
120mm
Distance from axis of vertical spindle to bed guideway
200mm — 760mm
Distance between spindle end and surface of worktable
100mm — 400mm
Spindle motor power
0.85kW / 1.5kW
Horizontal spindle
Spindle speeds range
38rpm — 1310rpm
Spindle speed steps ranges
12pcs
Spindle taper
ISO40
Distance from horizontal spindle axist to surface of working table
300mm
Distance between spindle axis and ram
175mm
Spindle motor power
0.8kW / 2.2kW
Feeds
Mechanical feed travels
600mm / 270mm / 300mm
Number of feed speeds
9pcs
Min. speed of traverse feeds
24mm/min / 24mm/min / 24mm/min
Max. speed of traverse feeds
402mm/min / 422mm/min / 422mm/min
Rapid traverse
402mm/min / 422mm/min / 422mm/min
Power of feed motors
0.37kW / 0.37kW / 0.75kW
Engines and power supply
Voltage
380V / 50Hz / Three phase
Overall dimensions and weight
Weight
1300kg
Overall length
1660mm
Overall width
1450mm
Overall height
2150mm
