LIZHU

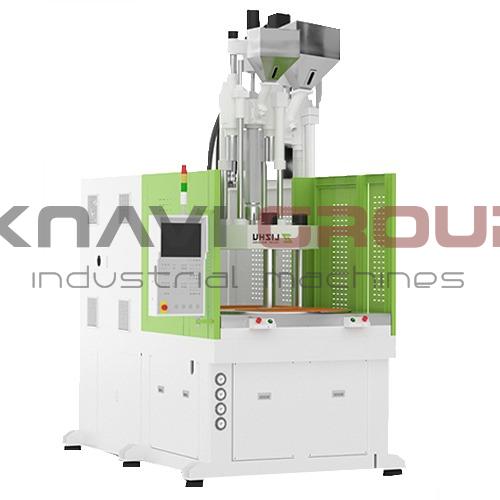

Vertical injection molding machine LZ-1200-2R

Серия: LZ-2R

Variation Rotary table

Clamping force 1200kN

Table diameter 1300mm

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

Variation Rotary table

Injection Unit

Screw diameter

45mm

50mm

55mm

Theoretical shot volume

286cm³

353cm³

427cm³

Injection pressure

215MPa

176MPa

146MPa

Injection weight

255g / 8.9oz

312g / 11oz

377g / 13.3oz

Clamping unit

Clamping force 1200kN

Max. opening stroke 300mm

Platen size 920mm x 760mm

Table diameter 1300mm

Max. mold size 710mm x 435mm

Thickness of mould 300mm

Space between tie bars 660mm x 500mm

Ejector stroke 50mm

Ejector force 500kN

Other

Motor power 30kW

Heating power 13kW

Total motor power 43kW

Tank capacity 380L

Cutting fluid consumption 1.3l/min

Overall dimensions and weight

Weight 8500kg

Overall length 3100mm

Overall width 2300mm

Overall height 4400mm
