Sodick

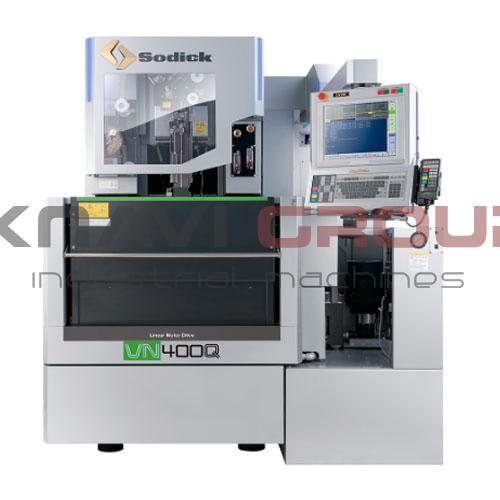

Wire cut EDM VN400Q

Серия: VN

Max. weight of workpiece 500kg

X/Y-Axis travel 400mm / 300mm

Z-Axis travel 230mm

U-Axle travel 90mm

V-Axle travel 90mm

Цена и условия

Цена по запросу

Характеристики

Machine unit

Work tank inner size 860mm x 740mm

Max. weight of workpiece 500kg

Max. taper angle 15° / 120mm

Wire diameter 0.05mm — 0.3mm

Wire feeding speed 25m/min

Wire tension 3gf — 23gf

Machining method

Submerge

Flushing type

Max. workpiece dimensions

830mm x 700mm x 215mm

830mm x 700mm x 225mm

CNC

Software Windows based

Controlled axis X-axis / Y-axis / Z-axis / U-axis / V-axis

Display 15″ / TFT LCD

Feeds

X/Y-Axis travel 400mm / 300mm

Z-Axis travel 230mm

U-Axle travel 90mm

V-Axle travel 90mm

Max. speed of traverse feeds 3000mm/min / 3000mm/min / 2000mm/min

Pulse generator

Operating current 32A

Dielectric fluid unit

Tank capacity 635L

Filter type Paper filter

Overall dimensions 820mm x 2250mm x 1895mm

Weight 450kg

Other

X-axis drive Linear motor

Y-axis drive Linear motor

U-axis drive Linear motor

V-axis drive Linear motor

Overall dimensions and weight

Weight 2920kg

Overall length 2070mm

Overall width 2920mm

Overall height 2135mm
