ODMAY

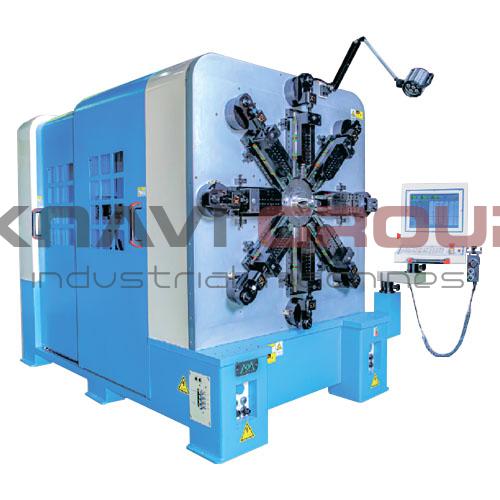

12-axis CNC spring former FV-S1245

Серия: FV

Quantity of controlled axis 12pcs + 4pcs

Spring-forming machine variation Сamless machine

Wire diameter 1.8mm — 5mm

Spring diameter 110mm

Wire feeding speed 90m/min

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

Quantity of controlled axis 12pcs + 4pcs

Type of spring Compression / Tension / Torsion / Double torsion / Wire bending

Spring-forming machine variation Сamless machine

CNC

CNC language Chinese / English

Processing parameters

Wire diameter 1.8mm — 5mm

Spring diameter 110mm

Wire feeding speed 90m/min

Wire feed value 0.01mm — 99999.99mm

Cam setting value 0.1° — 360°

Wire feeder

Loading weight 150kg

Controlled axes

Sliders axis 8pcs x 1kW

Wire feed axis 1pcs x 5.5kW

Core axis 1pcs x 2kW

Wire rotary axis 1pcs x 2.7kW

Spinner 1pcs x 0.4kW

Engines and power supply

Voltage 380V / 50Hz / Three phase

Overall dimensions and weight

Weight 4500kg

Overall length 2450mm

Overall width 1975mm

Overall height 2875mm
