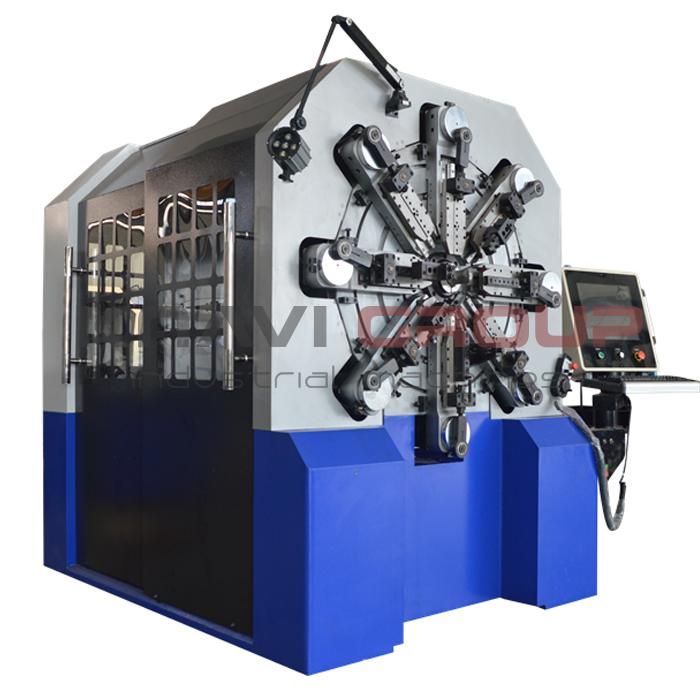

12-axis CNC spring forming machine YF-1250

Серия: YF

Quantity of controlled axis 12pcs

Type of spring Tension / Torsion / Double torsion / Wire bending

Spring-forming machine variation Сamless machine

Wire diameter 1.5mm — 5mm

Sliders axis 8pcs x 2kW

Wire feed axis 1pcs x 7kW

Total motor power 28.9kW

Цена и условия

6 866 236 RUB*

Условия доставки

ddp Москва

* Цена рассчитана на основе конфигурации оборудования, периферии, комплектации и города доставки — Москва. Стоимость товара и условия продажи не являются публичной офертой.

Характеристики

Basic feauturies

Quantity of controlled axis 12pcs

Type of spring Tension / Torsion / Double torsion / Wire bending

Spring-forming machine variation Сamless machine

CNC

CNC language Chinese / English

Processing parameters

Wire diameter 1.5mm — 5mm

Wire feed value 0.01mm — 9999.99mm

Controlled axes

Sliders axis 8pcs x 2kW

Wire feed axis 1pcs x 7kW

Core axis 1pcs x 1.5kW

Wire rotary axis 1pcs x 2.9kW

Engines and power supply

Total motor power 28.9kW

Voltage 280V / 50Hz / Three phase

Overall dimensions and weight

Weight 3500kg

Overall length 2200mm

Overall width 2300mm

Overall height 2100mm

Периферия

Spinner

YF-Spinner_1.5kW

Wire feeders

YF-500

Diameter of feeding tray : 1300mm , Loading weight : 500kg , Motor power : 2.2kW
