Machine tools and equipment / Bending and forming machinery / Wire forming machinery / Spring coiling machines / 5 axis CNC spring coiling machine JTC 520
JOINT

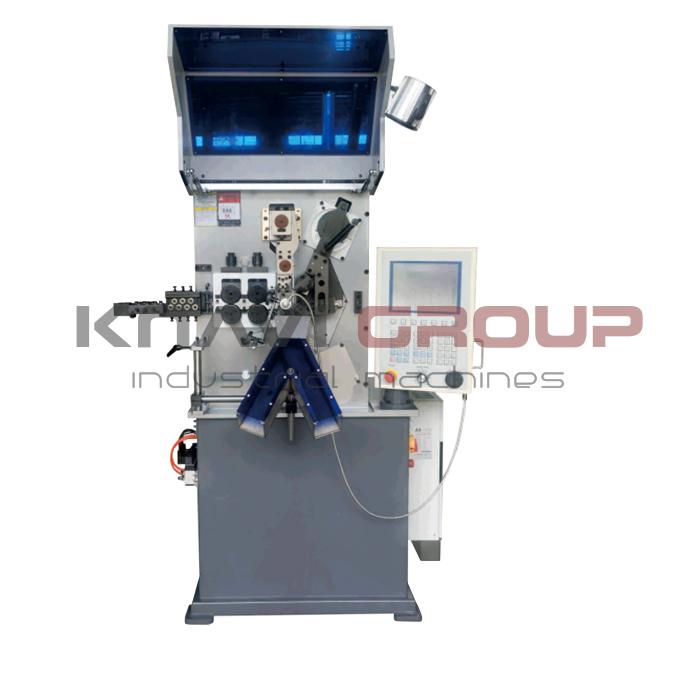

5 axis CNC spring coiling machine JTC 520

Серия: JTC 5
Quantity of controlled axis 5pcs
Spring diameter 45mm
Wire diameter 0.5mm — 2mm
Wire feed value 0.01mm — 10000mm
Wire feeding speed 100m/min

Основная конфигурация

Spring coiling machine computer
ARCUCHI
Windows based
Interactive programming
No
Yes

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

Quantity of controlled axis 5pcs
Type of spring Compression / Torsion

CNC

CNC language Chinese / English
Spring coiling machine computer
ARCUCHI
Windows based
Interactive programming
No
Yes

Processing parameters

Spring diameter 45mm
Wire diameter 0.5mm — 2mm
Wire feed value 0.01mm — 10000mm
Wire feeding speed 100m/min
Direction of coiling Right + Left
Wire feeding wheel pressing mode Mechanical

Controlled axes

Outer diameter control mode Two curves (CAM modes)
OD control axis 1.2kW
Pitch axis 1pcs x 0.75kW
Wire feed axis 1pcs x 2.7kW
Cutting axis 0.75kW / 0.75kW

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC
Total motor power 6.15kW

Overall dimensions and weight

Weight 800kg
Overall length 1350mm
Overall width 800mm
Overall height 1800mm

Периферия

Spring length detector

CXYX-1
CXYX-1
SLD-L1A
SLD-L1A
Measurement speed : 600pcs/min , Measurement accuracy : 0.005mm

Wire feeders

JTC-200
JTC-200

Комплектация

Diamond needle files
Количество: 1 set
Grease gun
Количество: 1 pcs
Left-direction coiling knife rest
Manual lubrication of guides
Oil gun
Количество: 1 pcs
Pneumocylinder
Количество: 1 pcs
Probe
Количество: 2 pcs
Right-direction coiling knife rest
Safety guard
Tools box
Torsion spring making unit
Инструмент и оснастка для навивки
Количество: 1 set
0.5mm / 0.6mm / 0.7mm / 0.8mm / 1.0 mm / 1.2 mm / 1.4mm / 1.6mm / 1.8mm / 2.0mm
Лампа освещения рабочей зоны
