YFJX

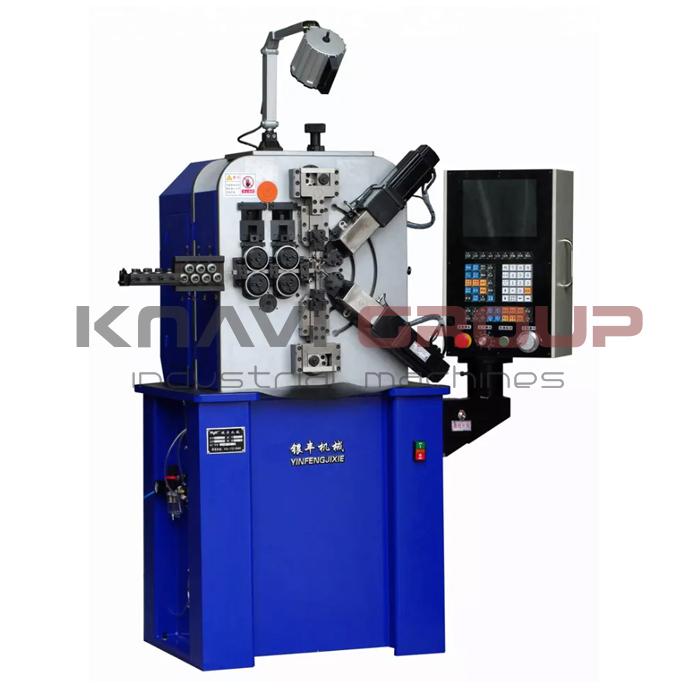

6-axis CNC spring coiling machine YF-8620

Серия: YF

Quantity of controlled axis 6pcs

Type of spring Compression / Tension / Wire bending

Spring diameter 30mm

Wire diameter 0.3mm — 2mm

Wire feeding speed 104m/min

Direction of coiling Right + Left

Wire feed axis 1pcs x 2.9kW

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

Quantity of controlled axis 6pcs

Type of spring Compression / Tension / Wire bending

CNC

CNC language Chinese / English

Processing parameters

Spring diameter 30mm

Wire diameter 0.3mm — 2mm

Wire feed value 0.01mm — 9999.99mm

Wire feeding speed 104m/min

Direction of coiling Right + Left

Wire feeder

Loading weight 100kg

Controlled axes

OD control axis 0.4kW / 0.4kW

Down-cut axis 1pcs x 1kW

Pitch axis 1pcs x 0.4kW

Wire feed axis 1pcs x 2.9kW

Cutting axis 1kW / 1kW

Engines and power supply

Total motor power 6.8kW

Voltage

380V / 50Hz / Three phase

220V / 50Hz / Single phase

Overall dimensions and weight

Weight 400kg

Overall length 1300mm

Overall width 800mm

Overall height 1800mm

Периферия

Wire feeders

CNC200

Diameter of feeding tray : 800mm , Loading weight : 200kg , Wire feeding speed : 160m/min , Motor power : 0.37kW
