Machine tools and equipment / Metalworking machine tools / Milling machines / Horizontal Boring and Milling machines / CNC boring and milling machine KDTK1250
KAIDA

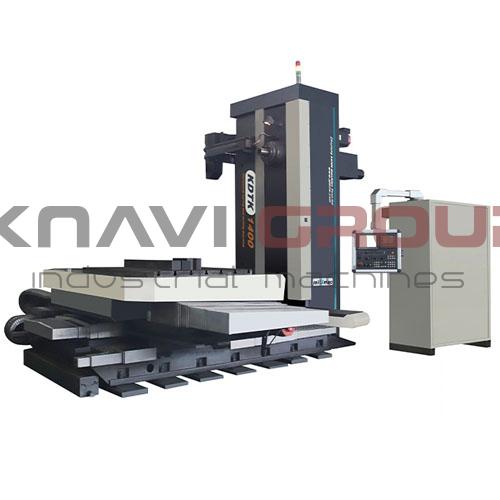

CNC boring and milling machine KDTK1250

Серия: KDTK
Working table size 1250mm x 1250mm
Max. weight of workpiece 5000kg
Spindle quill diameter 110mm
Spindle speeds range 5rpm — 3000rpm
Spindle motor power 22kW / 26kW

Цена и условия

Цена по запросу

Характеристики

CNC

CNC Fanuc 0i-MF Plus (1)

Working table

Working table size 1250mm x 1250mm
T-slots 9pcs / 22mm / 130mm
Max. weight of workpiece 5000kg

Headstock

Spindle quill diameter 110mm
Spindle speeds range 5rpm — 3000rpm
Spindle taper BT50
Spindle torque 140N⋅m
Distance from horizontal spindle axist to surface of working table 1800mm
Distance from spindle end to table center 85mm — 2385mm

Linear axes

Table longitudinal travel (Z-axis) 1800mm
Table cross travel (X-axis) 1400mm
Spindle head vertical travel (Y-axis) 1800mm
Extension Spindle Travel (W-axis) 500mm

Feeds

Feeding speed 10m/min — 5000m/min
Rapid traverse 16000mm/min / 16000mm/min / 16000mm/min

Accuracy

Positioning accuracy 0.025mm / 0.025mm / 0.025mm / 15''
Repeatability accuracy 0.01mm / 0.01mm / 0.01mm / 6''
Minimum indexing of table/B axis 0.001°
Setting limits 0.001mm

Automatic tool changer (ATC)

Tool magazine capacity 60pcs
Max. tool diameter 245mm / 125mm
Max. tool lenght 400mm
Tool сhanging time (Tool-to-Tool) 13sec.
Max. tool weight 25kg

Engines and power supply

Spindle motor power 22kW / 26kW
Power of feed motors 6kW / 9kW / 6kW / 4kW / 7kW

Overall dimensions and weight

Weight 22000kg
Overall length 6500mm
Overall width 6100mm
Overall height 3830mm

Комплектация

3-axes linear roller guideway
3-axes linear scale
FAGOR
Air blow gun
Air-conditioner for electrical cabinet
Automatic centralized oil lubrication
Coolant system
Counter weight central guide device
Hydraulic
German ZF gear box
NSK spindle and ball screw bearings
Status tower light
Светодиодная лампа освещения рабочей зоны
Х/Y/Z axis bellows
Электронные компоненты Schneider
