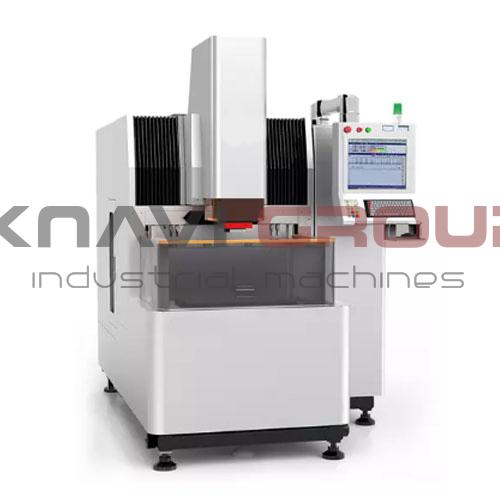

CNC Die-sink EDM machine HQ-U60

Серия: HQ(U)

Working table size 850mm x 600mm

X/Y-Axis travel 600mm / 400mm

Z-Axis travel 400mm

Max. weight of workpiece 1800kg

Характеристики

Machine unit

Die-sink EDM Machine design Ram-type

Design specifics Built-in dielectric fluid unit, Built-in CNC controller unit, Built-in pulse generator unit

Working table size 850mm x 600mm

Work tank inner size 1280mm x 1040mm x 450mm

X/Y-Axis travel 600mm / 400mm

Z-Axis travel 400mm

Max. weight of workpiece 1800kg

Distance between table surface and electrode plate 300mm – 700mm

Max. electrode weight 50kg

Dielectric fluid unit

Tank capacity 900L

Filter type Paper filter / 2pcs

Pulse generator

Operating current 50A

Max.material removal rate 500mm³/min

Electrode wear rate 0.1%

Accuracy

Positioning accuracy 0.006mm

Repeatability accuracy 0.003mm

Best surface roughness 0.07μm/Ra

CNC

Software Linux

EDM system CNC

Controlled axis X-axis / Y-axis / Z-axis

Setting limits 0.1mm

Display 17″

Engines and power supply

Voltage 380V / 50Hz / Three phase

Motor type Servomotor

Motor power 9kW

Other

Y-axis drive Servomotor

X-axis drive Servomotor

Z-axis drive Servomotor

Overall dimensions and weight

Weight 5500kg

Overall length 1750mm

Overall width 2800mm

Overall height 3100mm
