Machine tools and equipment / Metalworking machine tools / Metal lathes / Horizontal CNC Lathes / CNC Horizontal Lathe Hi-TECH 200CL/MC
Hwacheon

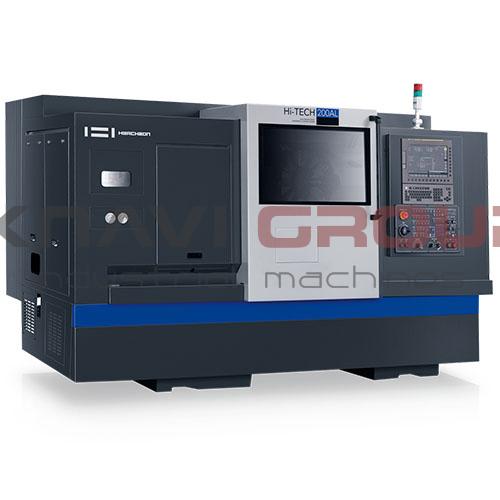

CNC Horizontal Lathe Hi-TECH 200CL/MC

Серия: Hi-TECH [C]
Max. swing diameter over bed 500mm
Max Cutting Diameter 325mm
Standard Cutting Diameter 270mm
Processing length 528mm

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

CNC lathe type Slant-bed CNC lathe

Capability

Max. swing diameter over bed 500mm
Max Cutting Diameter 325mm
Standard Cutting Diameter 270mm
Processing length 528mm

Headstock

Spindle speeds range 3500rpm
Lathe Spindle Nose A2-8
Spindle bore diameter 90mm
Bar Size 76mm
Spindle Bearing Inner Diameter 130mm
Spindle motor power 11kW / 15kW

Lathe chuck

Chuck size 10″

Feeds

X-Axis travel 195mm
Z-Axis travel 660mm
Rapid traverse 30000mm/min / 30000mm/min
Power of feed motors 3kW / 3kW

Carriage

Tool post Lathe turret
Number of stations 10pcs
Tool Size 25mm х 40mm
Indexing time 0.15sec.

Tailstock

Max. travel of tailstock quill 100mm
Tailstock quill diameter 80mm
Taper MT4

CNC

Model Fanuc 0i-TF

Other

Oil tank capacity 12L
Water tank capacity 180L
Hydraulic Tank Capacity 11L

Engines and power supply

Total motor power 30kW

Overall dimensions and weight

Weight 4650kg
Overall length 2875mm
Overall width 1675mm
Overall height 1720mm
