Luzhong

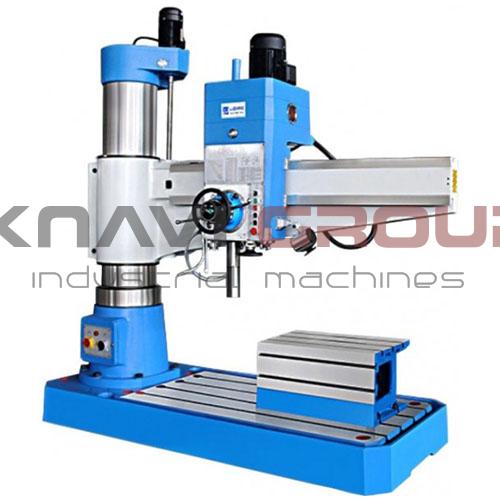

Radial Drilling machine Z30125x40

Серия: Z30

Max. drilling diameter 125mm

Spindle speeds range 6.3rpm — 800rpm

Distance between spindle axis and column 600mm — 4000mm

Spindle motor power 18.5kW

Цена и условия

18 449 101 RUB*

Условия доставки

ddp Москва

* Цена рассчитана на основе конфигурации оборудования, периферии, комплектации и города доставки — Москва. Стоимость товара и условия продажи не являются публичной офертой.

Характеристики

Capability

Max. drilling diameter 125mm

Headstock

Spindle speed steps ranges 22pcs

Spindle speeds range 6.3rpm — 800rpm

Spindle feeds 16pcs

Range of spindle feeds 0.06mm/r — 3.2mm/r

Spindle taper Metric #80

Travel of spindle quill 560mm

Clamping type Hydraulic

Working area

Distance between spindle axis and column 600mm — 4000mm

Distance between spindle end and working surface of basic plate 750mm — 2500mm

Engines and power supply

Spindle motor power 18.5kW

Elevating motor power 1250kW

Voltage 380V / 50Hz

Overall dimensions and weight

Overall dimensions 4960mm x 2000mm x 4780mm

Weight 28500kg

Overall dimensions and weight

Weight 28500kg

Overall length 4960mm

Overall width 2000mm

Overall height 4780mm
