SGSK

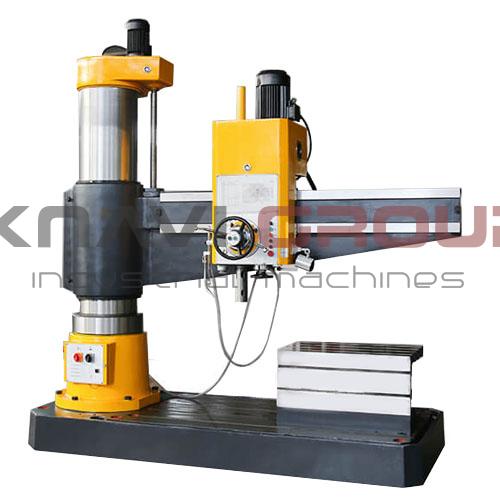

Radial Drilling machine Z30100x31

Серия: Z30

Max. drilling diameter 100mm

Spindle speeds range 8rpm — 1000rpm

Distance between spindle axis and column 570mm — 3150mm

Spindle motor power 15kW

Цена и условия

9 464 917 RUB*

Условия доставки

ddp Москва

* Цена рассчитана на основе конфигурации оборудования, периферии, комплектации и города доставки — Москва. Стоимость товара и условия продажи не являются публичной офертой.

Характеристики

Capability

Max. drilling diameter 100mm

Headstock

Spindle speed steps ranges 22pcs

Spindle speeds range 8rpm — 1000rpm

Spindle feeds 16pcs

Range of spindle feeds 0.06mm/r — 3.2mm/r

Spindle taper MT6

Travel of spindle quill 500mm

Clamping type Hydraulic

Working area

Distance between spindle axis and column 570mm — 3150mm

Distance between spindle end and working surface of basic plate 750mm — 2500mm

Engines and power supply

Spindle motor power 15kW

Voltage 380V / 50Hz

Overall dimensions and weight

Overall dimensions 4660mm x 1630mm x 4525mm

Weight 20000kg

Overall dimensions and weight

Weight 20000kg

Overall length 4660mm

Overall width 1630mm

Overall height 4525mm

Комплектация

Connecting rod

Drift

Drilling chuck

Reduction sleeve
