Slant Bed CNC Gang Tool Lathe H52 (STS), China | Low price

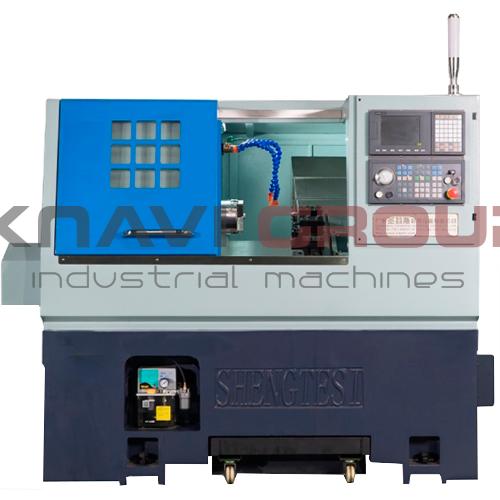

Slant Bed CNC Gang Tool Lathe H52

Серия: H

Max. swing diameter over bed 400mm

Processing length 200mm

Chuck size 8mm

Характеристики

Basic feauturies

CNC lathe type Slant-bed CNC lathe / 30°

Capability

Max. swing diameter over bed 400mm

Max Cutting Diameter 380mm

Processing length 200mm

Headstock

Lathe Spindle Nose A2-6

Spindle bore diameter 62mm

Bar Size 51mm

Spindle torque 47.8N⋅m

Spindle motor power 7.5kW / 11kW

Model

SYNTEC 22TA

FANUC 0i-TF PLUS

Siemens 828D

Lathe chuck

Chuck size 8mm

Clamping type Hydraulic

Feeds

X-Axis travel 800mm

X-axis transmission type Ball screw / Ø 32mm

Z-Axis travel 250mm

Z-axis transmission type Ball screw / Ø 32mm

Rapid traverse 25000mm/min / 25000mm/min

Positioning accuracy 0.01mm / 0.01mm

Repeatability accuracy 0.002mm / 0.002mm

Power of feed motors 1.3kW / 1.3kW / 1.69kW

Carriage

Tool post Lathe turret

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC

Overall dimensions and weight

Weight 2500kg

Overall length 2229mm

Overall width 1565mm

Overall height 1767mm
