KAIDA

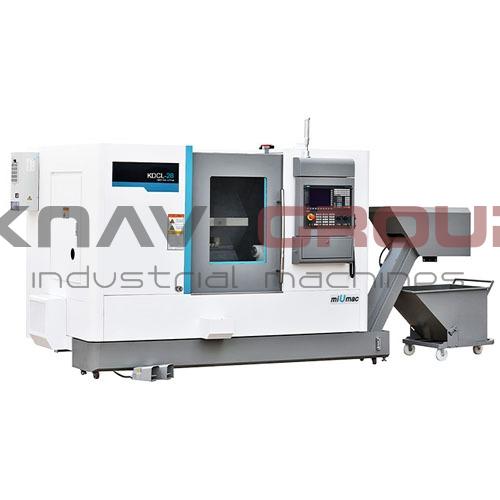

Turning center KDCL-28H

Серия: KDCL

CNC lathe type Slant-bed CNC lathe / 45°

Max. swing diameter over bed 520mm

Processing length 420mm

Цена и условия

8 123 284 RUB*

Условия доставки

ddp Москва

* Цена рассчитана на основе конфигурации оборудования, периферии, комплектации и города доставки — Москва. Стоимость товара и условия продажи не являются публичной офертой.

Характеристики

Basic feauturies

CNC lathe type Slant-bed CNC lathe / 45°

C axis Presence

Capability

Max. swing diameter over bed 520mm

Processing length 420mm

Feeds

X-Axis travel 255mm

X-axis transmission type Ball screw

Z-Axis travel 540mm

Z-axis transmission type Ball screw

Rapid traverse 30000mm/min / 30000mm/min

Positioning accuracy 0.01mm / 0.012mm

Repeatability accuracy 0.003mm / 0.005mm

Carriage

Tool post Lathe turret

Number of stations 12pcs

Tools

Tooling Live tooling

Tools quantity 12pcs

Tool shank 20mm x 20mm

Tool shank diameter 32mm

Motor power 2.7kW / 3.7kW

Live tooling speed 5000rpm

Tailstock

Max. travel of tailstock quill 120mm

Tailstock quill diameter 80mm

Morse cone MT4

Cutting fluid

Power of coolant pump motor 0.18kW

Lubrication system

Lubrication system Full-automatic

Overall dimensions and weight

Weight 4300kg

Overall length 4500mm

Overall width 1850mm

Overall height 2000mm
