Machine tools and equipment / Metalworking machine tools / CNC machining centers / CNC Turning Centers / Turning center LT-42
MICROCUT

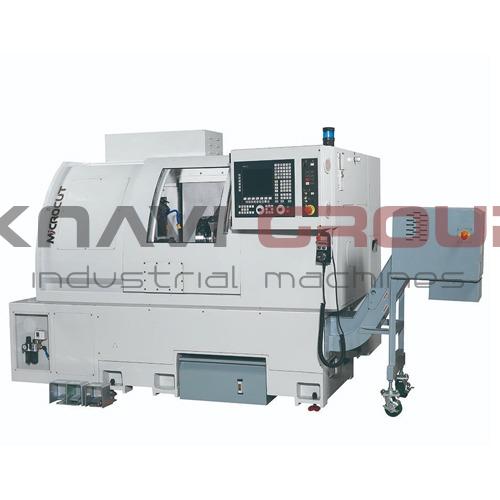

Turning center LT-42

Серия: LT
Max. swing diameter over bed 500mm
Max. swing over cross slide: 220mm
Spindle speeds range 6000rpm

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

CNC lathe type Slant-bed CNC lathe / 30°

Capability

Max. swing diameter over bed 500mm
Max. swing over cross slide: 220mm
Processing length 460mm

Main spindle

Spindle speeds range 6000rpm
Spindle bore diameter 42mm
Lathe chuck
169mm / Hydraulic
169mm / Collet chuck

Feeds

X-Axis travel 215mm
X-axis transmission type Ball screw / Ø 32mm
Z-Axis travel 520mm
Z-axis transmission type Ball screw / Ø 32mm
Rapid traverse 30000mm/min / 30000mm/min

Carriage

Tool post Lathe turret

Cutting fluid

Tank capacity 140L
Power of coolant pump motor 0.53kW

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC

Lubrication system

Lubrication system Full-automatic
Lubricatingoil pump power 0.012kW

Hydraulic system

Motor power of hydraulic station 1.5kW

Overall dimensions and weight

Weight 3000kg
Overall length 2530mm
Overall width 1821mm
Overall height 1930mm

Периферия

Automatic barfeeders

DH65 S2
DH65 S2
Bar Size : 5mm — 65mm , Max. bar lenght : 1210mm , Magazine capacity : 114pcs \ 5mm

Chip conveyors

Fedek Turbo HF
Fedek Turbo HF

Комплектация

Air-conditioner for electrical cabinet
Automatic centralized oil lubrication
Bar feeder interface
Boring tool holder
C axis
CE specifications
End face tool holder
External turning tool holder
Front Door Safety System
Heater exchanger for electrical cabinet
High pressure coolant pump
20 Bar
Hydraulic Unit
Oil mist collector
Parts catcher
Safety guard
Status tower light
Tools box
Transformer
Лампа освещения рабочей зоны
