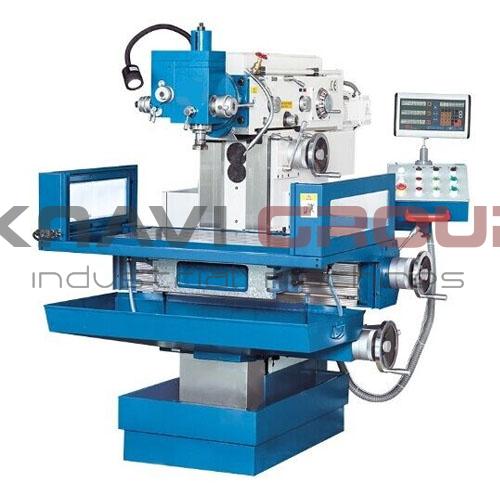

Universal tool milling machine X8130A

Серия: X8

Milling machine variation Universal / Tool-making

Milling Horizontal / Vertical

Max. weight of workpiece 300kg

Spindle speeds range 40rpm — 2000rpm

Spindle speed steps ranges 18pcs

Milling head swivel angle -90° / 90°

Характеристики

Basic feauturies

Milling machine variation Universal / Tool-making

Milling Horizontal / Vertical

Horizontal worktable

Working table size 750mm x 300mm

T-slots 7pcs / 14mm / 45mm

Max. weight of workpiece 300kg

Vertical worktable

Working table size 850mm x 250mm

T-slots 5pcs / 14mm / 45mm

Vertical spindle

Spindle speeds range 40rpm — 2000rpm

Spindle speed steps ranges 18pcs

Spindle taper ISO40

Milling head swivel angle -90° / 90°

Travel of spindle quill 60mm

Distance between spindle end and surface of worktable 10mm

Horizontal spindle

Spindle speeds range 40rpm — 2000rpm

Spindle speed steps ranges 18pcs

Spindle taper ISO40

Distance from horizontal spindle axist to surface of working table 40mm

Spindle motor power 3kW

Feeds

Manual feed travels 400mm / 300mm / 400mm

Number of feed speeds 18pcs

Min. speed of traverse feeds 10mm/min / 10mm/min / 10mm/min

Max. speed of traverse feeds 500mm/min / 500mm/min / 500mm/min

Rapid traverse 1200mm/min / 1200mm/min / 1200mm/min

Power of feed motors 1.5kW

Cutting fluid

Power of coolant pump motor 0.04kW

Engines and power supply

Voltage 380V / 50Hz

Overall dimensions and weight

Weight 1900kg

Overall length 1220mm

Overall width 1810mm

Overall height 171mm

Периферия

Boring heads

F212A

Max. boring diameter : 200mm , Automatic feed : 0.08mm/r

Tilting Rotary Tables

T15300

Working table size : 620mm x 300mm , Swivel angle : -360° / 360° , Tilting angle (forward/backward) : -30° / 30° , Tilting angle (left/right) : -30° / 30°

Machine vise

QH160

Width of vice jaw : 160mm , Height of vice jaw : 50mm , Max. open distance of vice jaw : 125mm

Slotting heads

CA7580

Max. boring diameter : 80mm , Ratio of eccentric wheel to horizontal spindle : 1:2.5

Digital Readout Unit (DRO)

DRO SINO SDS6-3V

Dividing heads

FA11125

Center height : 125mm , Index dial on dividing handle : 7.5° / 2' , Gearing ratio : 1:48

Rotary tables

TS320

Table diameter : 320mm , Morse cone : MT4 , Gearing ratio : 1:90

Комплектация

Automatic centralized oil lubrication

Chip area cover

Chip collector tray

Coolant system

Mill arbors

Количество: 2 pcs

22mm

Milling chuck

Количество: 1 pcs

Reduction sleeve

Количество: 1 set

MK1 / MK2 / MK3 / MK4

Tools box

Количество: 1 pcs

Лампа освещения рабочей зоны
