Machine tools and equipment / Metalworking machine tools / CNC machining centers / CNC vertical machining centers (VMC) / Vertical machining center DV-1200
LITZ

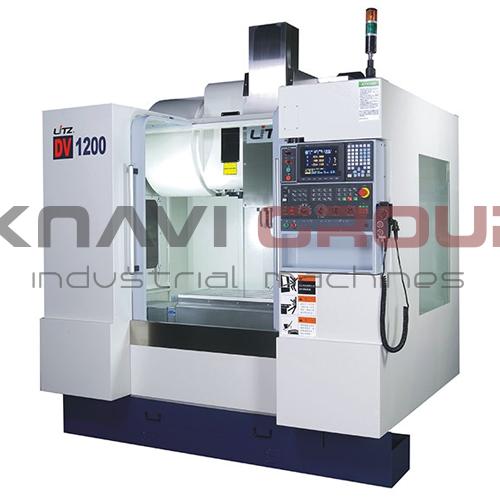

Vertical machining center DV-1200

Серия: DV
Working table size 1220mm x 620mm
Max. weight of workpiece 1000kg
Feed travels 1200mm / 600mm / 675mm

Цена и условия

Цена по запросу

Характеристики

Working table

Working table size 1220mm x 620mm
T-slots 5pcs / 18mm / 100mm
Max. weight of workpiece 1000kg

Spindle

Spindle drive Direct drive
Spindle taper BBT-40
Spindle motor power 11kW / 15kW
Distance from vertical spindle nose to surface of working table 100mm / 775mm
Spindle speeds range
10000rpm
12000rpm
15000rpm

Accuracy

Positioning accuracy 0.01mm / 0.01mm / 0.01mm
Repeatability accuracy 0.005mm / 0.005mm / 0.005mm

Automatic tool changer (ATC)

Tool magazine capacity 24pcs
Max. tool diameter 150mm / 85mm
Max. tool lenght 300mm
Max. tool weight 7kg

Feeds

Feed travels 1200mm / 600mm / 675mm
Max. speed of traverse feeds 20000mm/min / 20000mm/min / 20000mm/min
Rapid traverse 30000mm/min / 30000mm/min / 24000mm/min
Power of feed motors 2kW / 2kW / 3.5kW
X/Y guideways type Linear guidway
Z-axis guideway type Linear guidway
X-axis transmission type Ball screw
Y-axis transmission type Ball screw
Z-axis transmission type Ball screw

CNC

Model
FANUC 0i MF
SIEMENS 828D
Mitsubishi M80

Cutting fluid

Water tank capacity 360L

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC

Chip and dust removal systems

Chip carrier Presence

Other

Lubrication system Full-automatic
Electrical cabinet With heat exchanger
Splash guard cover Full splash guard

Overall dimensions and weight

Weight 8500kg
Overall length 2960mm
Overall width 3337mm
Overall height 3039mm
