Machine tools and equipment / Metalworking machine tools / Electrical discharge machines (EDM) / Wire-cut electrical discharge (WEDM) machines / Wire cut EDM Wi-430S
JSedm

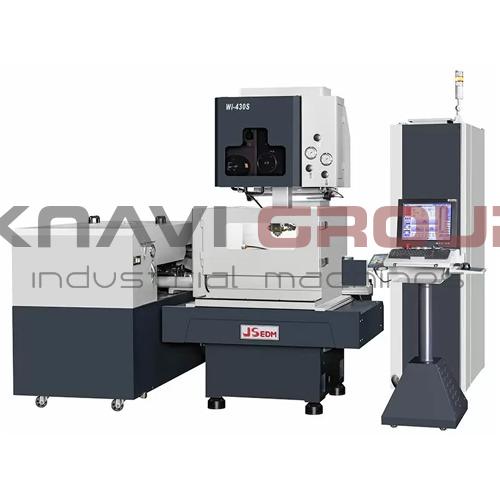

Wire cut EDM Wi-430S

Серия: Wi
Machining method Submerge
Working table size 640mm x 500mm
Max. workpiece dimensions 700mm x 540mm x 295mm
X/Y-Axis travel 400mm / 300mm
Z-Axis travel 300mm
U-Axle travel 100mm
V-Axle travel 100mm

Цена и условия

9 544 501 RUB*
Условия доставки
ddp Москва
* Цена рассчитана на основе конфигурации оборудования, периферии, комплектации и города доставки — Москва. Стоимость товара и условия продажи не являются публичной офертой.

Характеристики

Machine unit

Machining method Submerge
Working table size 640mm x 500mm
Max. workpiece dimensions 700mm x 540mm x 295mm
Max. weight of workpiece 500kg
Max. taper angle 22.5° / 100mm
Wire Brass, 5kg
Wire diameter 0.15mm — 0.3mm
Wire feeding speed 15m/min
Wire tension 200gf — 2400gf

CNC

Software Windows based
Controlled axis X-axis / Y-axis / Z-axis / U-axis / V-axis
Display 15″ / TFT LCD
Setting limits 0.001mm
EDM control system Close loop software servo system / 64 bit

Feeds

X/Y-Axis travel 400mm / 300mm
Z-Axis travel 300mm
U-Axle travel 100mm
V-Axle travel 100mm
Max. speed of traverse feeds 800mm/min

Accuracy

Machining Accuracy 0.003mm
Best surface roughness 0.3μm/Ra

Pulse generator

Operating current 25A
Cutting speed 200mm²/min

Dielectric fluid unit

Tank capacity 570L
Filtration rate 40l/min
Filter type Paper filter / 2pcs

Other

X-axis drive Servomotor
Y-axis drive Servomotor
Z-axis drive Servomotor
U-axis drive Servomotor
V-axis drive Servomotor

Overall dimensions and weight

Weight 2100kg
Overall length 3100mm
Overall width 2200mm
Overall height 2150mm

Комплектация

22.5 degree water nozzle
Количество: 1 set
Automatic voltage stabilizer
CAD/CAM Software
Chiller
Clamping tool
Количество: 1 set
Filter
Количество: 2 pcs
+GF+ System 3R Clamping tools
Ion exchange resin
Количество: 5 L
Power feed contact
Количество: 2 pcs
Remote controller
Количество: 1 pcs
Standard water nozzle
Количество: 1 set
Tools box
Количество: 1 pcs
Water resistance meter
Wire
Количество: 5 kg
0.25mm
Wire guide
Количество: 1 set
0.25mm
Wire speed meter
Wire tension meter
X & Y axis with linear scale
Автоматическая система заправки проволоки
Автоматическая система отреза проволоки
Русифицированная панель управления
