Machine tools and equipment / Bending and forming machinery / Wire forming machinery

Wire forming machinery

Wire forming is the process, where wire from a coil or blank length is forming or bending into a specific configuration. It can be achieved by a manual method of brute force applied to bending the wire around controlled shapes, or by special machinery to manipulate the wire to the needed shapes. Although there are many types of wire forming, will focus’s on few main types of specialized machine tools what are used in production wire forming.



Cam-type wire bending, coiling and forming machinery.

Early CAM operated machines required extensive setup, many trial runs and scrapped parts and large quantities make it all that setup worthwhile. Now, with adding CNC technology into CAM-type machines, wire forming process comes much faster and easy. But anyway, this types of wire forming machines still need cums adjusting and settings, some trial runs and good skills of the operator.



Camless-type wire bending, coiling and forming machinery.

In general, the technology of camless machines is based on cam technology - here the cam system is replaced by independent servo-drives for each axis. As a result, all machine tool setup is all done through CNC, without mechanical setup and calibration. This greatly simplifies the work with equipment and increases its speed.



Turning-type (lathe-type) wire bending, coiling and forming machinery.

The oldest technology of mechanical wire forming, which consists in winding wire on a rotating mandrel. Often for these purposes, lathes are used, or lathe-based special coiling machines. Simple compression and torsion springs are made in this way.



Spring making machinery at affordable prices.

On our site you will find a wide range of equipment and machines for the production of springs of various types. Our machines have high production efficiency, are reliable and durable. Assistance in the selection of a needed machine and equipment, installation supervision and commissioning, training, warranty and post-warranty maintenance, door-delivery to any region of the country, supply of spare parts and tools.

Подкатегории

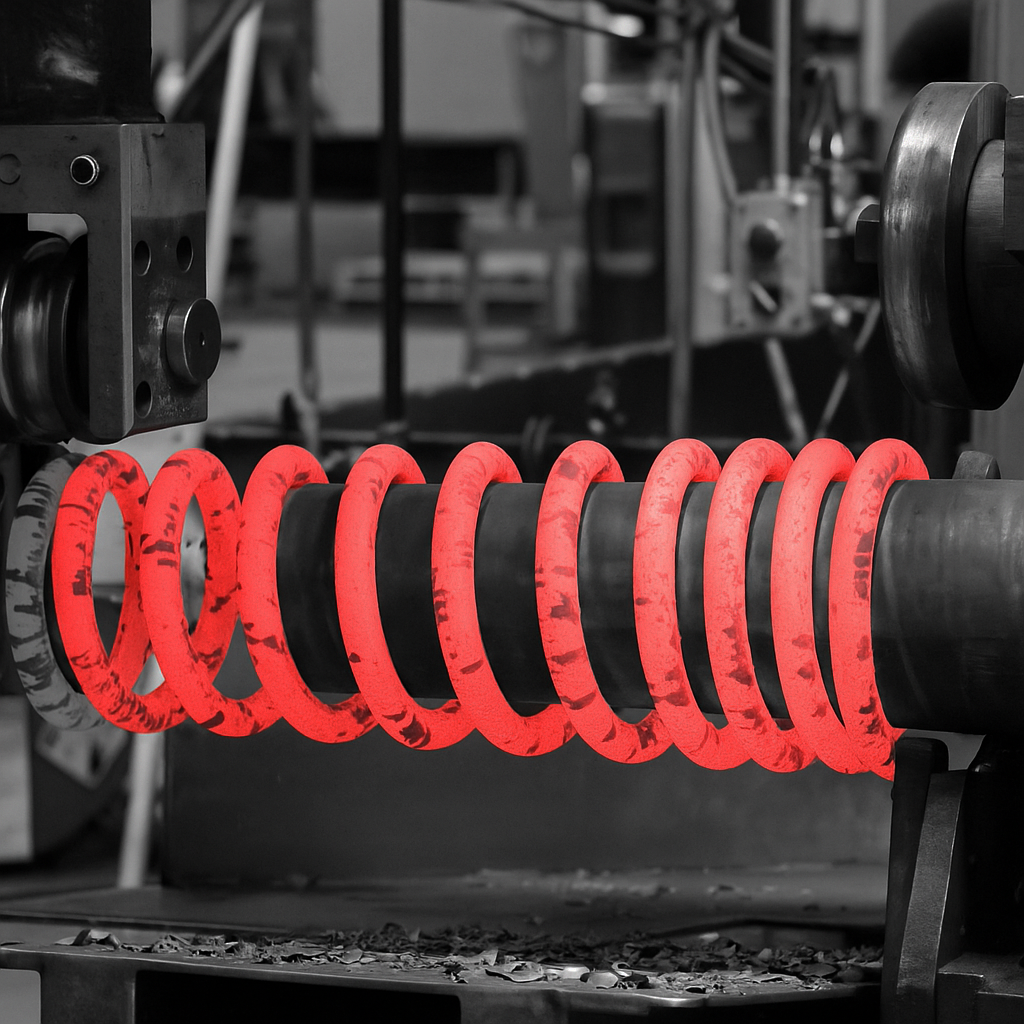

Hot coiling spring machines
Hot coiling spring machines
Spring coiling machines
Spring coiling machines
Spring forming machines
Spring forming machines
Wire feeders
Wire feeders
2D/3D wire bending machines
2D/3D wire bending machines
Specialized wire forming machines
Specialized wire forming machines
Bending and forming machines
Bending and forming machines
Straightening and cutting machines
Straightening and cutting machines
Всего: 182 товара
KDE TJCX

2D CNC bending machine TJCX2.5-5

Bending 2D
Quantity of controlled axis 4pcs
Wire feeding speed 50m/min
Wire feeding accuracy 0.2mm
Wire bending accuracy 0.5mm
Цена по запросу
Подробнее
KDE

CNC hot-coiling spring machine ZRH-65

Control method CNC
Quantity of controlled axis 2pcs
Direction of coiling Right + Left
Wire diameter 20mm — 65mm
Spring diameter 100mm — 450mm
Spring lenght 1200mm
Цена по запросу
Подробнее
KDE CK

3-axis CNC spring coiling machine 345

Quantity of controlled axis 3pcs
Type of spring Compression
Spring diameter 70mm
Wire diameter 0.8mm — 4.5mm
Цена по запросу
Подробнее
KDE

CNC hot-coiling spring machine ZRH-60

Control method CNC
Quantity of controlled axis 2pcs
Direction of coiling Right
Wire diameter 16mm — 60mm
Spring diameter 100mm — 600mm
Spring lenght 2000mm
Цена по запросу
Подробнее
KDE CK

6-axis CNC spring coiling machine 690

Quantity of controlled axis 6pcs
Type of spring Compression
Spring diameter 120mm
Wire diameter 3mm — 9mm
Wire feeding speed 70m/min
Total motor power 64.8kW
9 588 047 RUB*
Подробнее
KDE CK

7-axis CNC spring coiling machine 740

Quantity of controlled axis 7pcs
Type of spring Compression / Torsion
Spring diameter 70mm
Wire diameter 1mm — 4mm
Direction of coiling Right + Left
3 948 816 RUB*
Подробнее
EN | JOTING QDM

CNC forming machine QDM-CNC40T

Wire diameter 2mm — 8mm
Metal strip processing size 3mm x 60mm
Production capacity 150pcs/min
3 176 135 RUB*
Подробнее
KDE CK

3-axis CNC spring coiling machine 316

Quantity of controlled axis 3pcs
Type of spring Compression
Spring diameter 32mm
Wire diameter 0.3mm — 1.6mm
1 667 710 RUB*
Подробнее
EN | JOTING S

CNC Spring forming machine CNC502S

Quantity of controlled axis 3pcs + 3pcs
Spring-forming machine variation Cam machine
Wire diameter 0.2mm — 2.5mm
Metal strip processing size 1mm x 12mm
2 830 144 RUB*
Подробнее
EN | JOTING QDM

Mechanical forming machine QDM-26T

Wire diameter 0.6mm — 2.5mm
Metal strip processing size 1.2mm x 30mm
Production capacity 200pcs/min
4 620 446 RUB*
Подробнее
1 ... 12 13 14 ... 19
