Machine tools and equipment / Bending and forming machinery / Wire forming machinery

Wire forming machinery

Wire forming is the process, where wire from a coil or blank length is forming or bending into a specific configuration. It can be achieved by a manual method of brute force applied to bending the wire around controlled shapes, or by special machinery to manipulate the wire to the needed shapes. Although there are many types of wire forming, will focus’s on few main types of specialized machine tools what are used in production wire forming.



Cam-type wire bending, coiling and forming machinery.

Early CAM operated machines required extensive setup, many trial runs and scrapped parts and large quantities make it all that setup worthwhile. Now, with adding CNC technology into CAM-type machines, wire forming process comes much faster and easy. But anyway, this types of wire forming machines still need cums adjusting and settings, some trial runs and good skills of the operator.



Camless-type wire bending, coiling and forming machinery.

In general, the technology of camless machines is based on cam technology - here the cam system is replaced by independent servo-drives for each axis. As a result, all machine tool setup is all done through CNC, without mechanical setup and calibration. This greatly simplifies the work with equipment and increases its speed.



Turning-type (lathe-type) wire bending, coiling and forming machinery.

The oldest technology of mechanical wire forming, which consists in winding wire on a rotating mandrel. Often for these purposes, lathes are used, or lathe-based special coiling machines. Simple compression and torsion springs are made in this way.



Spring making machinery at affordable prices.

On our site you will find a wide range of equipment and machines for the production of springs of various types. Our machines have high production efficiency, are reliable and durable. Assistance in the selection of a needed machine and equipment, installation supervision and commissioning, training, warranty and post-warranty maintenance, door-delivery to any region of the country, supply of spare parts and tools.

Подкатегории

Hot coiling spring machines
Hot coiling spring machines

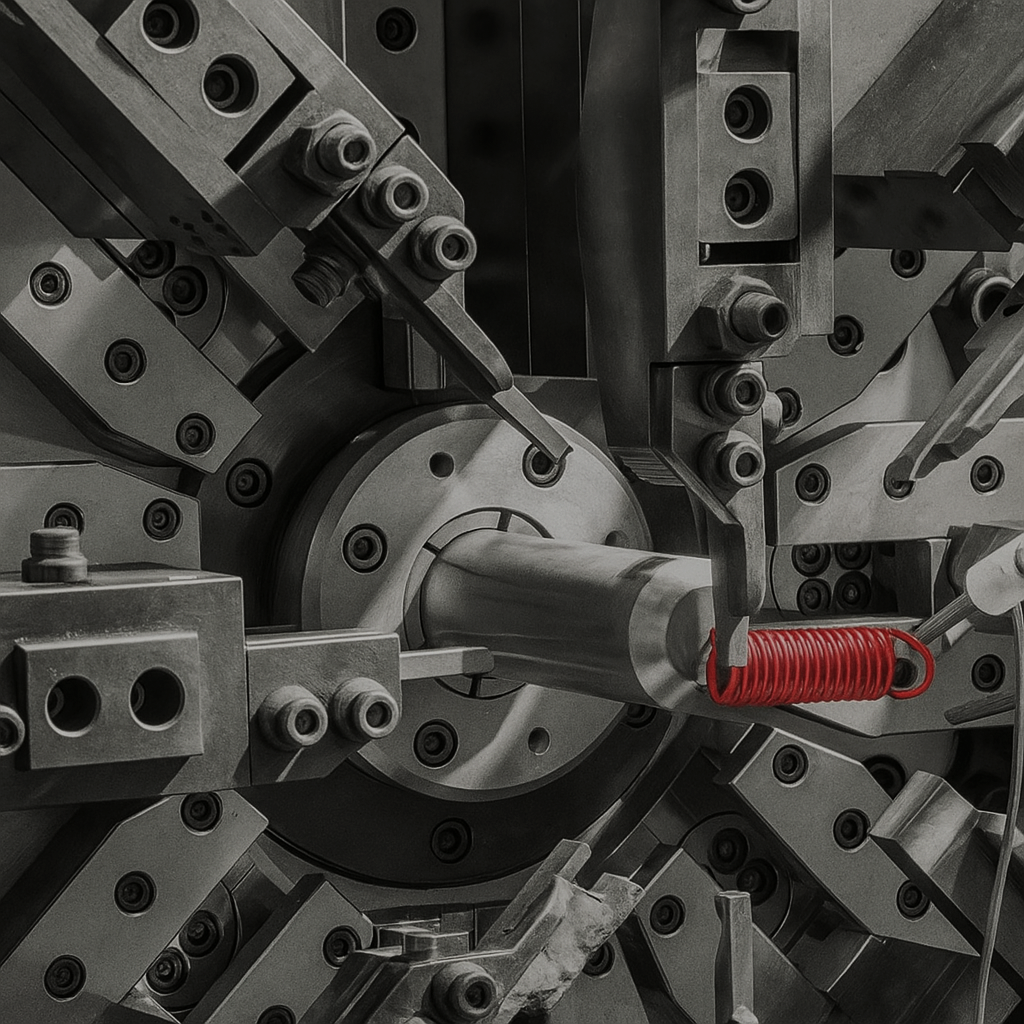

Spring coiling machines
Spring coiling machines

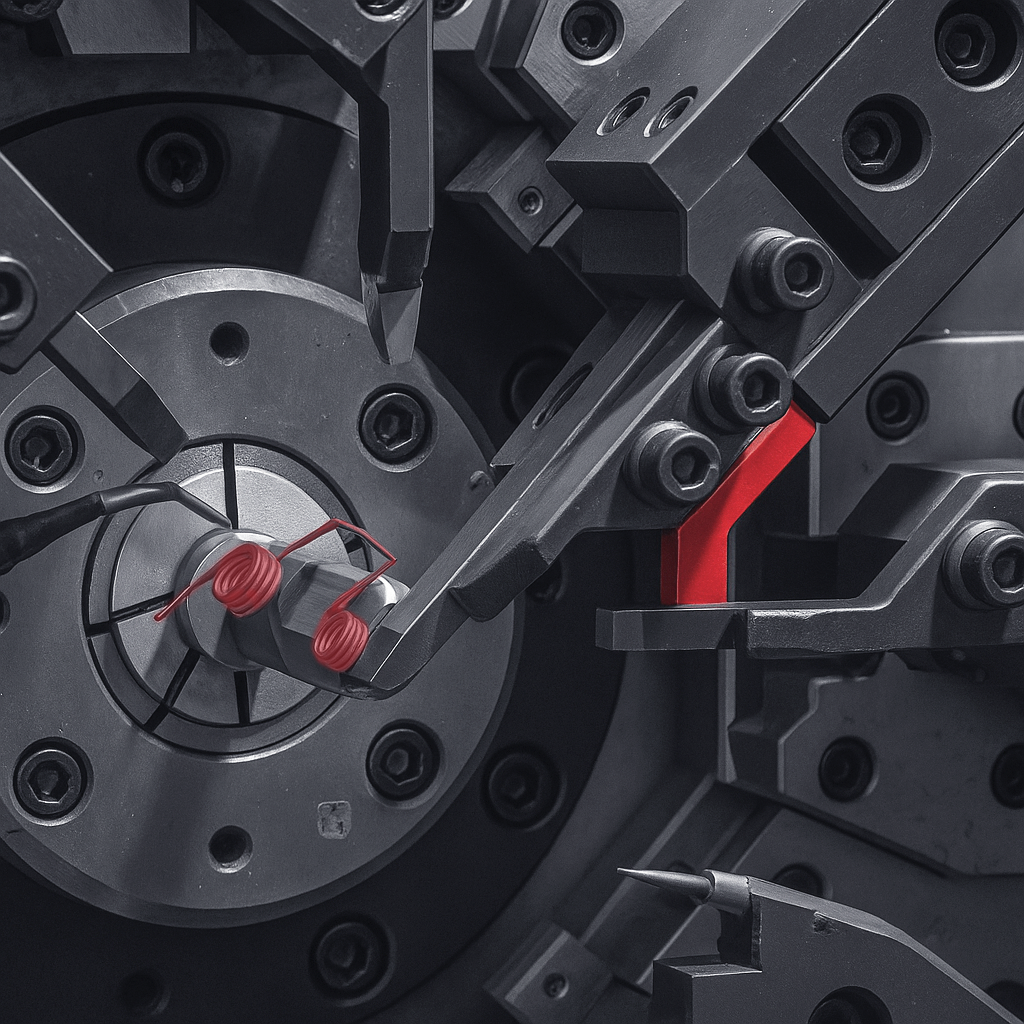

Spring forming machines
Spring forming machines

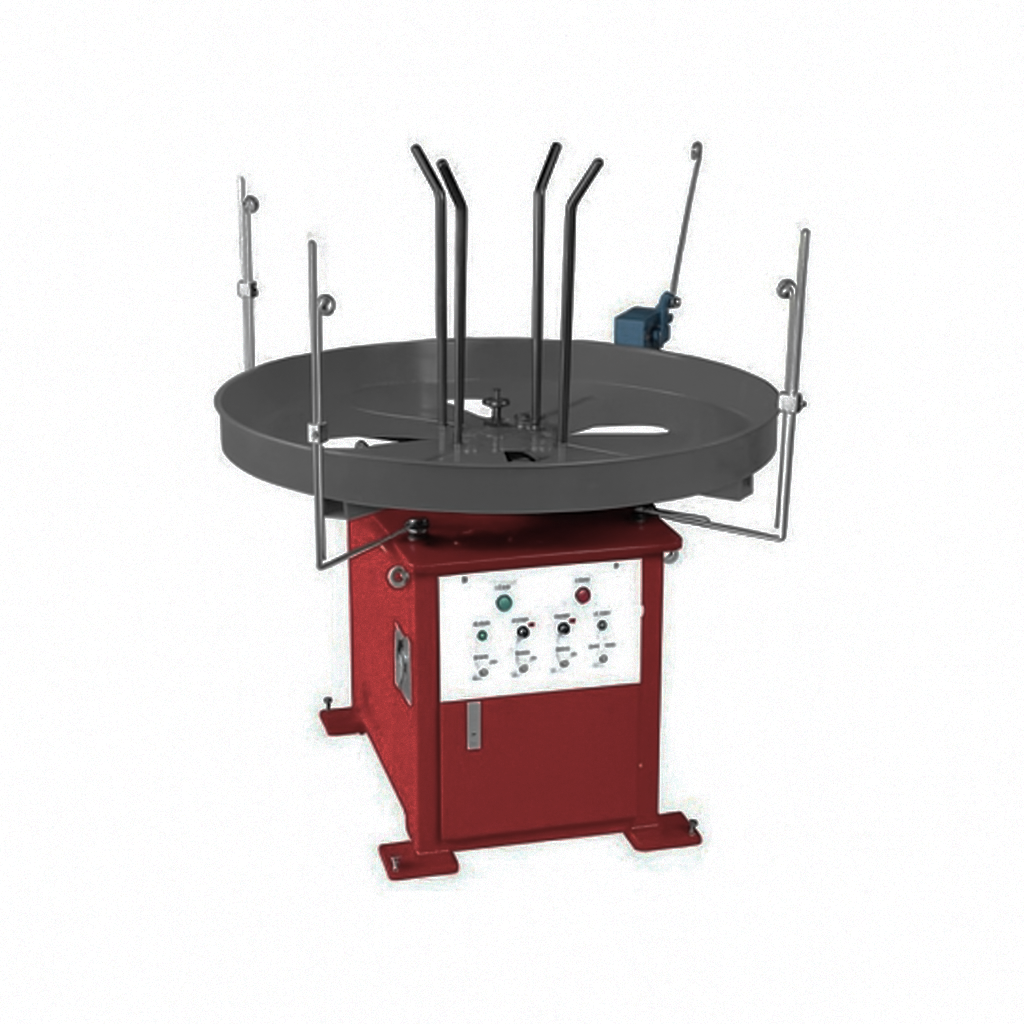

Wire feeders
Wire feeders

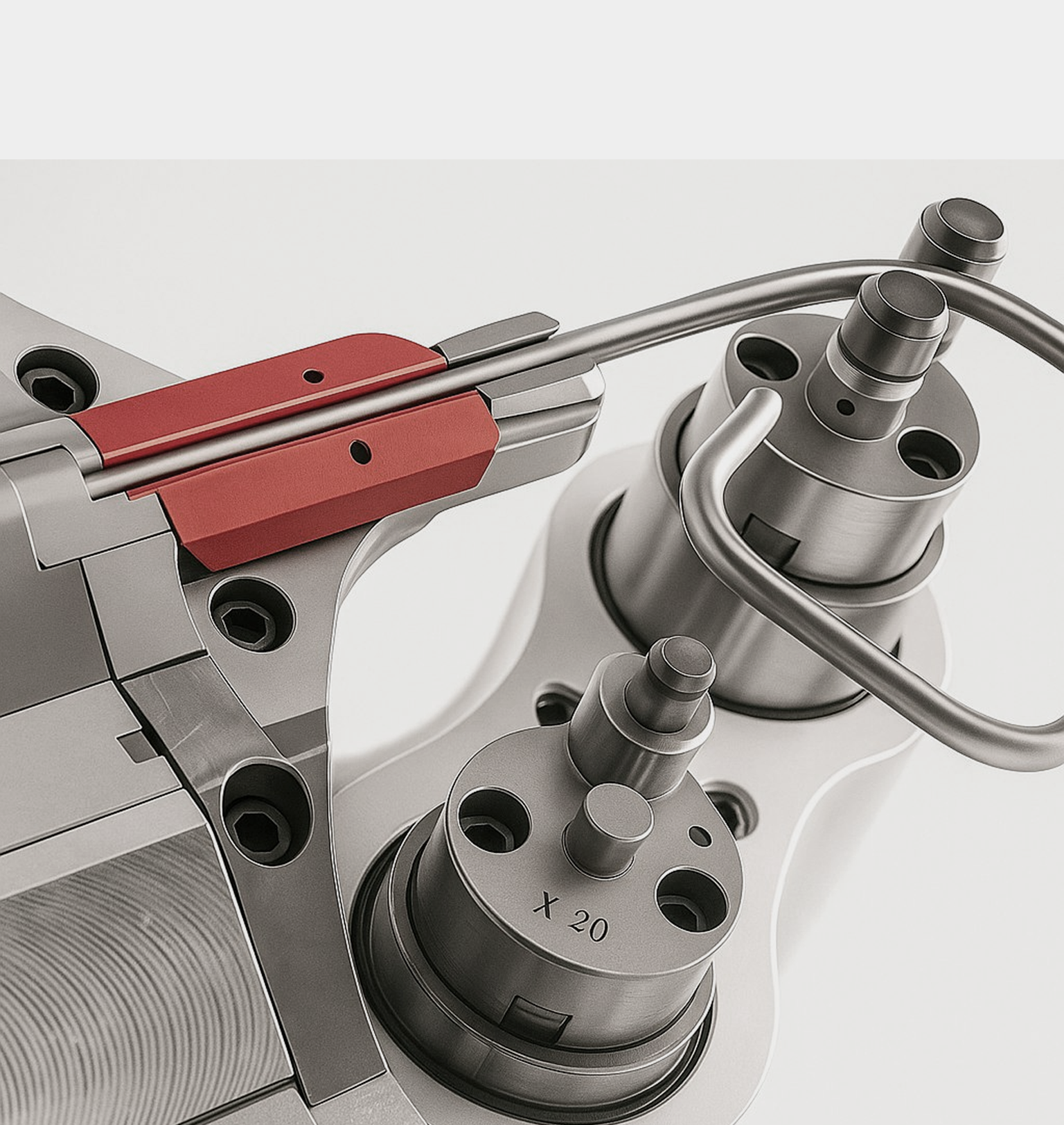

2D/3D wire bending machines
2D/3D wire bending machines
Specialized wire forming machines
Specialized wire forming machines
Bending and forming machines
Bending and forming machines
Straightening and cutting machines
Straightening and cutting machines
Всего: 182 товара
KDE CK

6-axis CNC spring coiling machine 6140

Quantity of controlled axis 6pcs
Type of spring Compression
Spring diameter 200mm
Wire diameter 7mm — 14mm
Wire feeding speed 140m/min
Цена по запросу
Подробнее
JOINT JTC 9

9 axis spring coiling machine JTC 980

Quantity of controlled axis 9pcs
Wire diameter 3mm — 8mm
Wire feed value 0.01mm
Wire feeding speed 70m/min
Цена по запросу
Подробнее
EN | JOTING CS

CNC Spring coiling machine CNC8CS

Quantity of controlled axis 2pcs
Type of spring Compression
Wire diameter 0.13mm — 0.8mm
Direction of coiling Right + Left
1 666 891 RUB*
Подробнее
HYD 40T

12-axis CNC spring forming machine 40T-12A

Quantity of controlled axis 12pcs
Spring-forming machine variation Сamless machine
Wire diameter 1mm — 4.2mm
Wire feeding speed 100m/min
Цена по запросу
Подробнее
WNJ TK

5-axis CNC spring coiling machine TK-5120-5

Quantity of controlled axis 5pcs
Spring diameter 150mm
Wire diameter 6mm — 12mm
Wire feeding speed 56m/min
Loading weight 3000kg
Цена по запросу
Подробнее
WNJ SLB

Automatic wire feeder SLB-500

Type Full-automatic
Diameter of feeding tray 1500mm
Loading weight 500kg
Wire feeding speed 36m/min
Motor power 2.2kW
Цена по запросу
Подробнее
JOINT ST

12-axis CNC spring forming machine ST55-12R

Quantity of controlled axis 12pcs
Spring-forming machine variation Сamless machine
Wire diameter 1.8mm — 5.5mm
Wire feeding speed 80m/min
9 555 627 RUB*
Подробнее
KDE CNC

3-axis CNC spring forming machine CNC342

Quantity of controlled axis 3pcs + 2pcs
Spring-forming machine variation Cam machine
Wire diameter 1.4mm — 4.2mm
Total motor power 14kW
3 522 978 RUB*
Подробнее
KDE CNC

Spring machine automatic wire feeder CNC200

Diameter of feeding tray 800mm
Loading weight 200kg
Wire feeding speed 160m/min
Motor power 0.37kW
Цена по запросу
Подробнее
KDE CK

4-axis CNC spring coiling machine 410

Quantity of controlled axis 4pcs
Type of spring Compression
Wire diameter 0.15mm — 1mm
Wire feeding speed 150m/min
Total motor power 4kW
Цена по запросу
Подробнее
