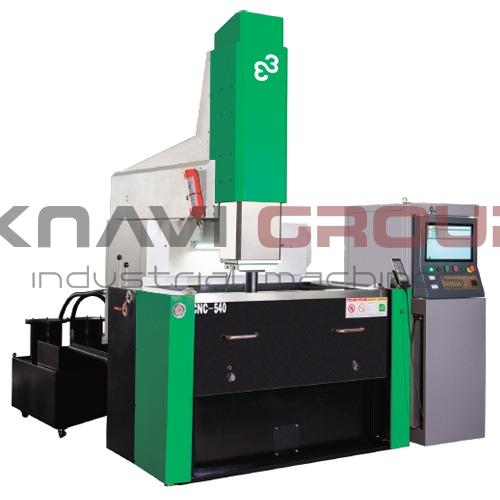

CNC Die-sink EDM machine CNC-540

Серия: CNC

Working table size 850mm x 500mm

X/Y-Axis travel 500mm / 400mm

Z-Axis travel 300mm

Max. weight of workpiece 2000kg

Характеристики

Machine unit

Design specifics Machine units are separate

Working table size 850mm x 500mm

Work tank inner size 1370mm x 840mm x 450mm

X/Y-Axis travel 500mm / 400mm

Z-Axis travel 300mm

Max. workpiece dimensions 1240mm x 800mm x 380mm

Max. weight of workpiece 2000kg

Distance between table surface and electrode plate 130mm – 480mm

Max. electrode weight 100kg

Dielectric fluid unit

Tank capacity 600L

Filter type Paper filter

Overall dimensions 1770mm x 1050mm x 420mm

Pulse generator

Operating current 50A

Total power input 9kVA

Max.material removal rate 400mm³/min

Electrode wear rate 0.1%

Overall dimensions 1100mm x 520mm x 1850mm

Accuracy

Positioning accuracy 0.005mm

Repeatability accuracy 0.002mm

Best surface roughness 0.2μm/Ra

CNC

EDM system CNC

Controlled axis X-axis / Y-axis / Z-axis

Display 15″ / TFT LCD

Engines and power supply

Voltage 380V / 50Hz

Other

Y-axis drive Servomotor

X-axis drive Servomotor

Z-axis drive Servomotor

Overall dimensions and weight

Weight 3000kg

Overall length 2500mm

Overall width 2650mm

Overall height 2830mm
