EN | JOTING

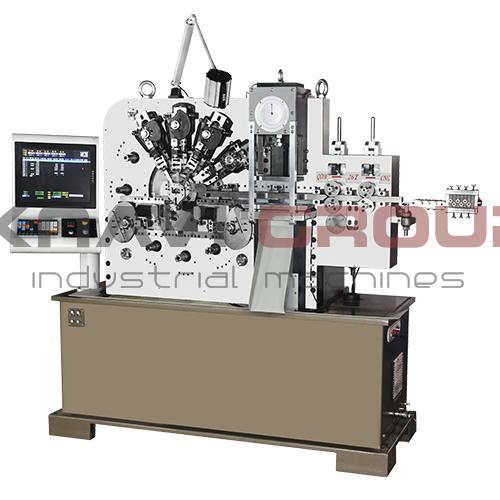

CNC forming machine QDM-CNC26T

Серия: QDM

Wire diameter 0.6mm — 2.5mm

Metal strip processing size 1.2mm x 30mm

Production capacity 200pcs/min

Цена и условия

5 581 477 RUB*

Условия доставки

ddp Москва

* Цена рассчитана на основе конфигурации оборудования, периферии, комплектации и города доставки — Москва. Стоимость товара и условия продажи не являются публичной офертой.

Характеристики

Basic feauturies

Spring-forming machine variation Cam machine

CNC

CNC language Chinese / English

Processing parameters

Wire diameter 0.6mm — 2.5mm

Length of WIRE Feeding No limitation

Wire feed value 0.03mm

Thickness of StripWire 0.3mm — 1.2mm

Metal strip processing size 1.2mm x 30mm

Hardness of Wire 80 (CARBON)

Punch stroke 37mm

Capability

Production capacity 200pcs/min

Punch processing ability 10tn

The sliding seat processing ability 1.5tn

Engines and power supply

Voltage 380V / 50Hz / Three phase

Wire feed axis motor 2kW

Press motor 4.5kW

Cam axis motor 4.5kW

Overall dimensions and weight

Weight 2120kg

Overall length 2250mm

Overall width 780mm

Overall height 1800mm
