Machine tools and equipment / Metalworking machine tools / Metal lathes / Horizontal CNC Lathes / CNC Horizontal Lathe Cutex 160A
Hwacheon

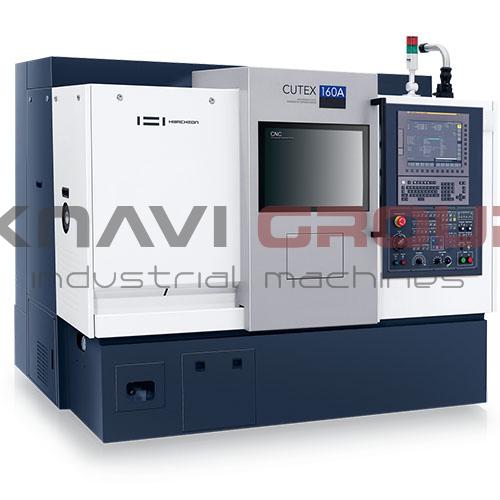

CNC Horizontal Lathe Cutex 160A

Серия: Cutex [A]
Max. swing diameter over bed 550mm
Max Cutting Diameter 300mm
Standard Cutting Diameter 186mm
Processing length 300mm

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

CNC lathe type Slant-bed CNC lathe

Capability

Max. swing diameter over bed 550mm
Max Cutting Diameter 300mm
Standard Cutting Diameter 186mm
Processing length 300mm

Headstock

Spindle speeds range 6000rpm
Lathe Spindle Nose A2-5
Spindle bore diameter 56mm
Bar Size 45mm
Spindle Bearing Inner Diameter 90mm
Spindle motor power 7.5kW / 11kW

Lathe chuck

Chuck size 6″

Feeds

X-Axis travel 170mm
Z-Axis travel 335mm
Rapid traverse 36000mm/min / 36000mm/min
Power of feed motors 1.8kW / 1.8kW

Carriage

Tool post Lathe turret
Number of stations 12pcs
Tool Size 25mm х 40mm
Indexing time 0.15sec.

Tailstock

Max. travel of tailstock quill 80mm
Tailstock quill diameter 60mm
Taper MT4

CNC

Model Fanuc 0i-TF

Other

Oil tank capacity 2L
Water tank capacity 82L
Hydraulic Tank Capacity 11L

Engines and power supply

Total motor power 25kW

Overall dimensions and weight

Weight 3200kg
Overall length 2120mm
Overall width 1520mm
Overall height 1720mm
