Machine tools and equipment / Metalworking machine tools / Metal lathes / Horizontal CNC Lathes / Horizontal CNC Lathe CUTEX 180AL
Hwacheon

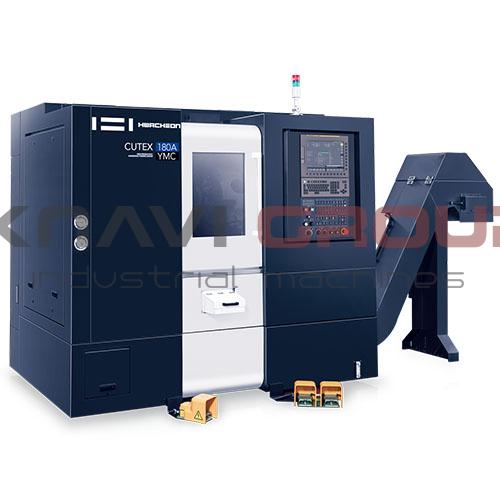

Horizontal CNC Lathe CUTEX 180AL

Серия: Cutex [A]
Max. swing diameter over bed 700mm
Max Cutting Diameter 350mm
Standard Cutting Diameter 187mm
Processing length 528mm

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

CNC lathe type Slant-bed CNC lathe

Capability

Max. swing diameter over bed 700mm
Max Cutting Diameter 350mm
Standard Cutting Diameter 187mm
Processing length 528mm

Headstock

Spindle speeds range 6000rpm
Lathe Spindle Nose A2-5
Spindle bore diameter 62mm
Bar Size 51mm
Spindle Bearing Inner Diameter 90mm
Spindle motor power 11kW / 15kW

Lathe chuck

Chuck size 6″

Feeds

X-Axis travel 205mm
X-axis transmission type Ball screw
Z-Axis travel 580mm
Z-axis transmission type Ball screw
Rapid traverse 36000mm/min / 36000mm/min
Power of feed motors 1.8kW / 1.8kW

Carriage

Tool post Lathe turret
Number of stations 12pcs
Tool Size 25mm х 40mm
Indexing time 0.344sec.

Tailstock

Tailstock Hydraulic
Taper MT4

CNC

Model Fanuc 0i-TF

Other

Oil tank capacity 2L
Water tank capacity 75L
Hydraulic Tank Capacity 11L

Engines and power supply

Total motor power 40kW

Overall dimensions and weight

Weight 3500kg
Overall length 2500mm
Overall width 1650mm
Overall height 1760mm
