MICK

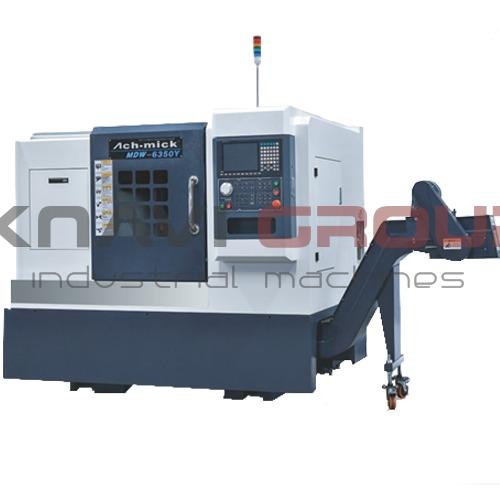

Slant Bed CNC Gang Tool Lathe MDW-6350

Серия: MDW

CNC lathe type Slant-bed CNC lathe / 25°

Y-axis Presence

Max. swing diameter over bed 600mm

Spindle speeds range 4000rpm

Spindle bore diameter 52mm

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

CNC lathe type Slant-bed CNC lathe / 25°

Y-axis Presence

Capability

Max. swing diameter over bed 600mm

Main spindle

Spindle speeds range 4000rpm

Spindle bore diameter 52mm

Feeds

X-Axis travel 620mm

Z-Axis travel 350mm

Y-Axis travel 70mm

Max. speed of traverse feeds 24000mm/min / 10000mm/min / 24000mm/min

Positioning accuracy 0.0025mm / 0.0025mm / 0.0025mm

Feed motor

Power of feed motors 1.7kW / 1.7kW / 1.7kW

Tools

Tool shank 20mm x 20mm

Tool shank diameter 32mm

Cutting fluid

Tank capacity 60L

Power of coolant pump motor 0.18kW

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC

Lubrication system

Lubricatingoil pump power 0.75kW

Hydraulic system

Motor power of hydraulic station 0.18kW

Hydraulic Tank Capacity 20L

Overall dimensions and weight

Weight 3050kg

Overall length 2340mm

Overall width 1940mm

Overall height 2090mm
