Machine tools and equipment / Metalworking machine tools / Metal lathes / Horizontal CNC Lathes / Slant Bed CNC Gang Tool Lathe MXC-46
MICK

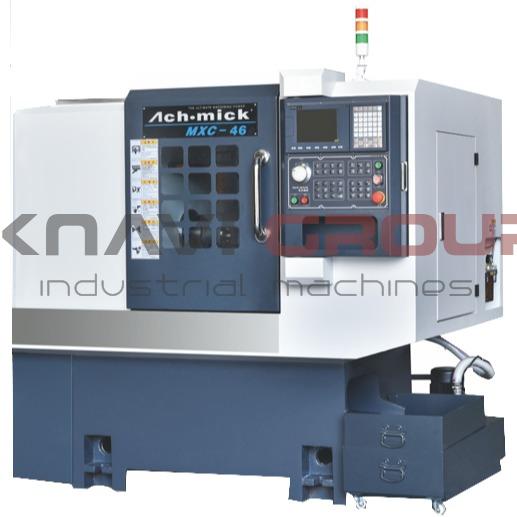

Slant Bed CNC Gang Tool Lathe MXC-46

Серия: MXC
CNC lathe type Slant-bed CNC lathe / 30°
Max. swing diameter over bed 330mm
Spindle speeds range 4000rpm
Spindle bore diameter 46mm

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

CNC lathe type Slant-bed CNC lathe / 30°

Capability

Max. swing diameter over bed 330mm

Headstock

Spindle speeds range 4000rpm
Spindle bore diameter 46mm

Feeds

X-Axis travel 800mm
X-axis transmission type Ball screw
Z-Axis travel 235mm
Z-axis transmission type Ball screw
Positioning accuracy 0.0025mm / 0.0025mm
Power of feed motors 0.85kW / 0.85kW

Carriage

Number of stations 10pcs
Tool shank 20mm x 20mm

Cutting fluid

Pump motor power 0.37kW

Other

Oil tank capacity 2L
Water tank capacity 60L
Hydraulic Tank Capacity 20L

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC

Overall dimensions and weight

Weight 2250kg
Overall length 2000mm
Overall width 1510mm
Overall height 1650mm
