MICK

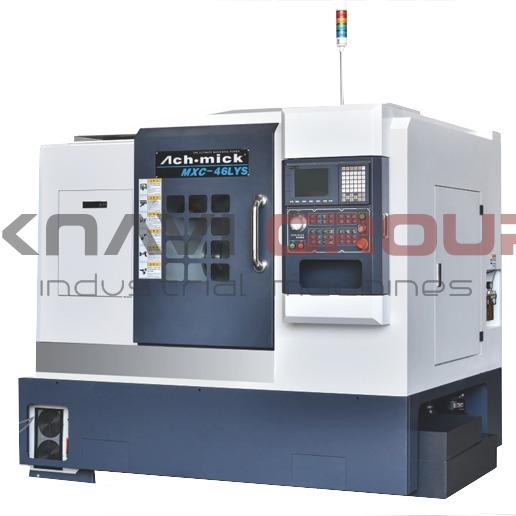

Slant Bed CNC Gang Tool Lathe MXC-46LYS

Серия: MXC

CNC lathe type Slant-bed CNC lathe / 30°

Y-axis Presence

Max. swing diameter over bed 400mm

Spindle speeds range 4000rpm

Spindle bore diameter 46mm

Цена и условия

6 122 546 RUB*

Условия доставки

ddp Москва

* Цена рассчитана на основе конфигурации оборудования, периферии, комплектации и города доставки — Москва. Стоимость товара и условия продажи не являются публичной офертой.

Характеристики

Basic feauturies

CNC lathe type Slant-bed CNC lathe / 30°

Y-axis Presence

Capability

Max. swing diameter over bed 400mm

Main spindle

Spindle speeds range 4000rpm

Spindle bore diameter 46mm

Spindle motor power 0.75kW

Feeds

X-Axis travel 900mm

Z-Axis travel 300mm

Y-Axis travel 200mm

Max. speed of traverse feeds 24000mm/min / 15000mm/min / 24000mm/min

Positioning accuracy 0.0025mm / 0.0025mm / 0.0025mm

Feed motor

Power of feed motors 1.8kW / 1.8kW / 1.8kW

Tools

Tools quantity 8pcs

Tool shank 20mm x 20mm

Live tooling speed 5000rpm

Cutting fluid

Tank capacity 60L

Power of coolant pump motor 0.37kW

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC

Lubrication system

Lubricatingoil pump power 0.75kW

Hydraulic system

Motor power of hydraulic station 0.75kW

Hydraulic Tank Capacity 20L

Overall dimensions and weight

Weight 2950kg

Overall length 2340mm

Overall width 1940mm

Overall height 2090mm
