YORNEW

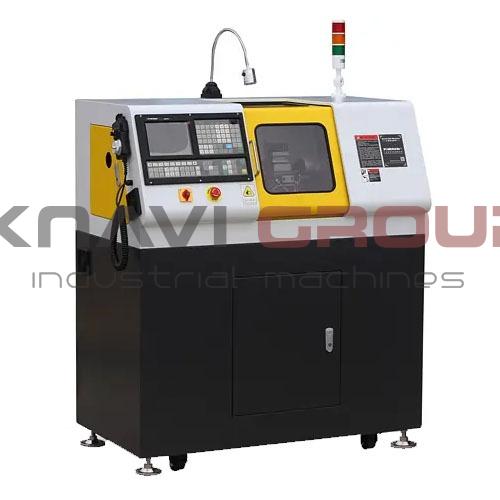

Small CNC Lathe CK210B

Серия: CK

Max. swing diameter over bed 210mm

Max. swing over cross slide: 80mm

Spindle speeds range 300rpm — 1750rpm

Основная конфигурация

Spindle motor power

1.1kW

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

Modification CNC lathe

Capability

Max. swing diameter over bed 210mm

Max. swing over cross slide: 80mm

Distance between centers 290mm

Headstock

Spindle speeds range 300rpm — 1750rpm

Spindle taper MT4

Spindle bore diameter 26mm

Type of electric motor Servomotor

Spindle cooling Water cooling

Spindle motor power

1.1kW

Feeds

Power of feed motors 0.4kW

X-Axis travel 90mm

Z-Axis travel 300mm

Max. speed of traverse feeds 2000mm/min / 2000mm/min

Rapid traverse 8000mm/min / 8000mm/min

Carriage

Tool shank 12mm x 12mm

Lathe chuck

Chuck size 100mm

Clamping type Mechanical

Chuck 3-jaw chuck

Tailstock

Tailstock quill diameter 20mm

Taper MT2

Indication and control

CNC

Model

KY980Tc

Siemens 808D

Accuracy

Positioning accuracy 0.03mm / 0.03mm

Repeatability accuracy 0.02mm / 0.02mm

Engines and power supply

Voltage 220V / AC

Overall dimensions and weight

Weight 280kg

Overall length 1170mm

Overall width 750mm

Overall height 1350mm

Периферия

Lathe toolposts

ATC CK210B 4pos

ATC CK210B 8pos
