Machine tools and equipment / Metalworking machine tools / Metal lathes / Swiss-type lathes / Swiss-type CNC lathe MA25-6S
Jianke

Swiss-type CNC lathe MA25-6S

Серия: MA
Linear axis number 6pcs / X1 / X2 / Y1 / Y2 / Z1 / Z2
Total tools quantity 16pcs / 11pcs / 27pcs
Modification Dual spindles swiss-type lathe
Machining range diameter (spindle/subspindle) 25mm / 25mm
Max. processing length 200mm / Removable Rotary Guide Bush
C axis Presence / 0.001°

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

Linear axis number 6pcs / X1 / X2 / Y1 / Y2 / Z1 / Z2
Total tools quantity 16pcs / 11pcs / 27pcs
Modification Dual spindles swiss-type lathe
CNC
Syntec 220TB
Fanuc 0i-TF

Processing parameters

Machining range diameter (spindle/subspindle) 25mm / 25mm
Max. processing length 200mm / Removable Rotary Guide Bush

Main spindle

Spindle cooling Oil cooling
Spindle speeds range 10000rpm
Spindle bore diameter 26mm
C axis Presence / 0.001°
Max. drilling diameter 10mm
Tapping capacity M8
Motor power 2.5kW / 3.7kW

Back spindle

Spindle cooling Oil cooling
Spindle speeds range 10000rpm
Spindle bore diameter 26mm
C axis Presence / 0.001°
Max. drilling diameter 8mm
Tapping capacity M6
Motor power 2.5kW / 3.7kW

Cross driven tools main spindle

Cross driven tools 2pcs / ER11 / 10000rpm
Cross driven tools 2pcs / ER16 / 6000rpm
Max. drilling diameter 8mm
Tapping capacity М6
Motor power 1.1kW

Cross driven tools sub spindle

Cross driven tools 4pcs / ER11 / ER16 / 6000rpm

Main spindle O.D. turning tools

Tool seat arrangement Upside tool holder
Tool number 5pcs
Tool Size 12mm x 12mm
tool number 1pcs
tool size 16mm х 16mm

Main spindle end face tools

End-face fixed tools 4pcs / ER11 / ER16

Sub-spindle O.D. turning tools

Tool seat arrangement Side offset tool holder
Tool number 2pcs
Tool Size 12mm x 12mm

Sub-spindle end face tools

End-face driven tools 3pcs / ER11 / ER16 / 6500rpm

Linear axes

Rapid traverse 24m/min / 32m/min / 32m/min / 24m/min / 32m/min / 32m/min
Axis drive motor power 1kW

Other

Water tank capacity 250L

Overall dimensions and weight

Weight 2960kg
Overall length 2400mm
Overall width 1400mm
Overall height 1700mm

Периферия

Automatic barfeeders

CTG 26 3.0
CTG 26 3.0
Bar Size : 5mm — 26mm , Max. bar lenght : 3100mm , Magazine capacity : 22pcs \ 10mm
XT 320 S2 (3.2)
XT 320 S2 (3.2)
Bar Size : 26mm , Max. bar lenght : 3200mm

Chip conveyors

FEDEK HB
FEDEK HB

Комплектация

Automatic centralized oil lubrication
Bar feeder collet
Bar feeder interface
End face rotary tools holder
Количество: 1 pcs
Sub spindle
End face tool holder
Количество: 1 pcs
Sub spindle
End face tool holder
Количество: 1 pcs
Main spindle
External turning tool holder
Количество: 1 pcs
Sub spindle
External turning tool holder
Количество: 1 pcs
Main spindle
Guide bush
Guide sleeve collet
High pressure coolant pump
Main spindle collet
Oil mist collector
Parts catcher
Parts Ejector
Radial drive unit
Количество: 1 pcs
Sub spindle
Radial drive unit
Количество: 1 pcs
Main spindle
Status tower light
Sub spindle collet
Tools box
Transformer
Лампа освещения рабочей зоны

Товары этой серии

Сравнить товары серии
Swiss-type CNC lathe
Jianke MA

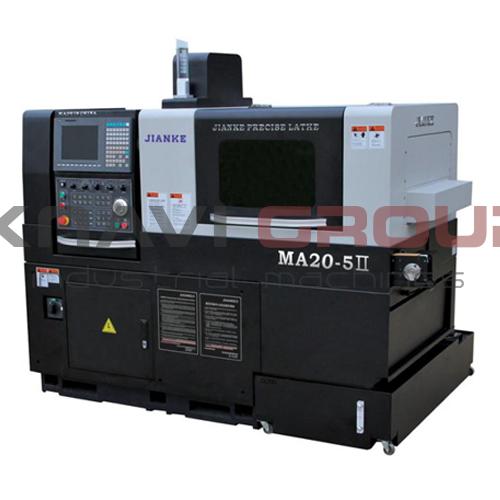

Swiss-type CNC lathe MA20-5II
