Machine tools and equipment / Metalworking machine tools / Metal lathes / Swiss-type lathes / Swiss-type CNC lathe GT 13
TORNOS

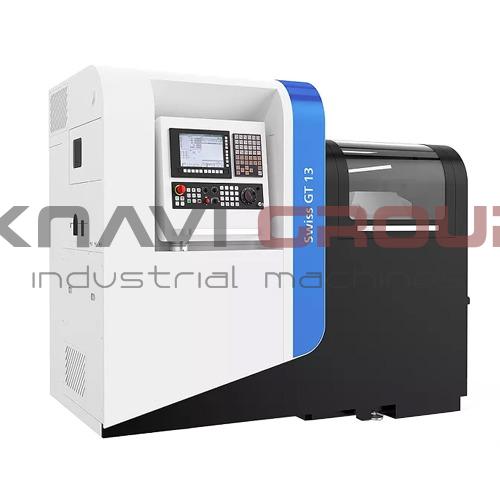

Swiss-type CNC lathe GT 13

Серия: GT
Linear axis number 6pcs / X1 / X2 / Y1 / Y2 / Z1 / Z2
Total tools quantity 18pcs / 12pcs / 30pcs
Modification Dual spindles swiss-type lathe
Machining range diameter (spindle/subspindle) 13mm / 13mm
Max. processing length 190mm / Removable Rotary Guide Bush

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

Linear axis number 6pcs / X1 / X2 / Y1 / Y2 / Z1 / Z2
Total tools quantity 18pcs / 12pcs / 30pcs
Modification Dual spindles swiss-type lathe
CNC Fanuc 31i-B Plus

Processing parameters

Machining range diameter (spindle/subspindle) 13mm / 13mm
Max. processing length 190mm / Removable Rotary Guide Bush

Main spindle

Spindle speeds range 15000rpm
C axis 0.001°
Motor power 4kW / 5kW

Back spindle

Spindle speeds range 15000rpm
C axis 0.001°
Motor power 4kW / 5kW

Cross driven tools main spindle

Cross driven tools 3pcs / 10000rpm
Cross driven tools 2pcs / 6000rpm
Motor power 1kW

Main spindle O.D. turning tools

Tool seat arrangement Side offset tool holder
Tool number 8pcs
Tool Size 12mm x 12mm

Main spindle end face tools

End-face fixed tools 4pcs
Motor power 1kW

Sub-spindle end face tools

End-face driven tools 4pcs / 6000rpm
End-face fixed tools 8pcs
Motor power 0.75kW

Linear axes

Rapid traverse 32m/min / 32m/min / 32m/min / 32m/min / 32m/min / 32m/min

Other

Water tank capacity 200L
Power of coolant pump motor 0.44kW

Overall dimensions and weight

Weight 2800kg
Overall length 2170mm
Overall width 1140mm
Overall height 1890mm

Комплектация

Air reservoir system
Automatic centralized oil lubrication
Bar feeder collet
Bar feeder interface
CE specifications
Guide bush
Direct-drive rotary guide bushing
Guide sleeve collet
High pressure coolant pump
20 Bar
Main spindle and sub spindle C-axis control
Main spindle collet
Oil mist collector
Parts catcher
Parts Ejector
Pneumatic
Status tower light
Sub spindle collet
Tools box
Work conveyor
Лампа освещения рабочей зоны
