Machine tools and equipment / Plastic processing machinery / Injection molding machines / Vertical injection molding machines / Vertical injection molding machine LZ-1600D
LIZHU

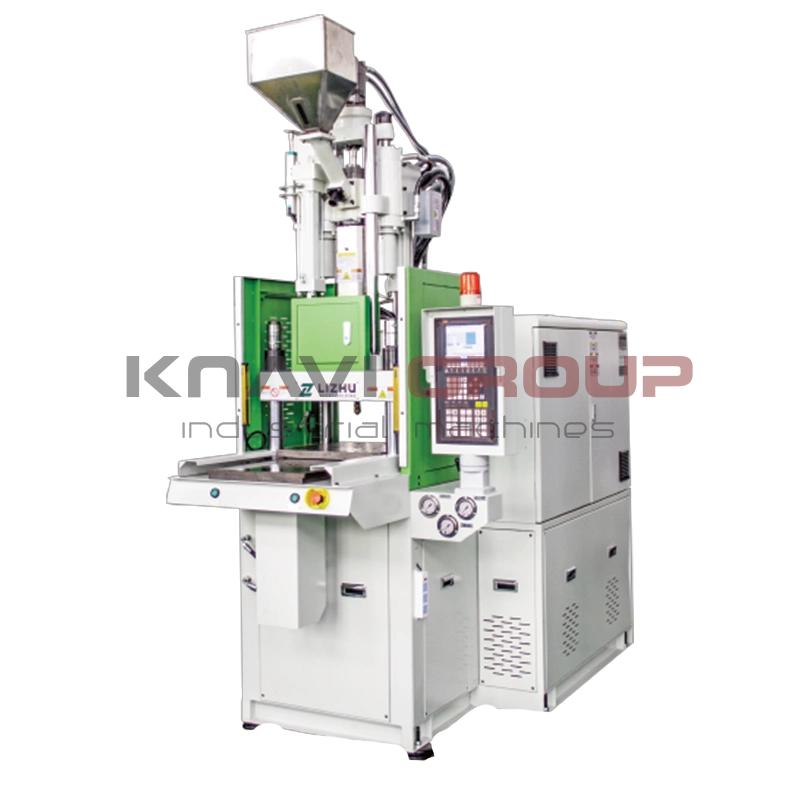

Vertical injection molding machine LZ-1600D

Серия: LZ
Screw diameter 30mm
Theoretical shot volume 99cm³
Injection weight 109g
Injection speed 91cm³/s

Цена и условия

Цена по запросу

Характеристики

Injection Unit

Screw diameter 30mm
Theoretical shot volume 99cm³
Injection weight 109g
Injection speed 91cm³/s
Number of heating zones 5pcs

Clamping unit

Clamping force 1600kN
Max. opening stroke 200mm
Platen size 910mm x 500mm
Thickness of mould 180mm
Space between tie bars 380mm
Ejector stroke 50mm
Ejector force 58kN

Other

Motor power 30kW
Heating power 16.3kW
Tank capacity 480L
Cutting fluid consumption 1.3l/min

Overall dimensions and weight

Weight 4500kg
Overall length 2700mm
Overall width 1750mm
Overall height 3600mm

Комплектация

Coolant system
Cylinder rod
Manifold block
NSK bearings
O-ring
Piston
Screw pump
Solenoid directional valve
SSR
Thermocouple
U type sealing
