Machine tools and equipment / Bending and forming machinery / Wire forming machinery / Spring forming machines / 10-axis CNC spring forming machine ST20-10
JOINT

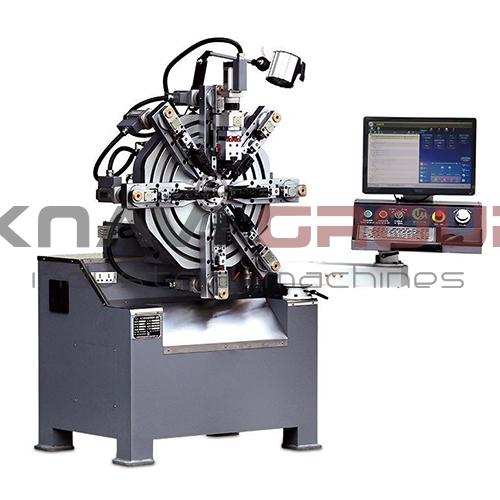

10-axis CNC spring forming machine ST20-10

Серия: ST
Quantity of controlled axis 10pcs + 6pcs
Spring-forming machine variation Сamless machine
Wire diameter 0.2mm — 2mm
Wire feeding speed 120m/min

Цена и условия

3 267 890 RUB*
Условия доставки
ddp Москва
* Цена рассчитана на основе конфигурации оборудования, периферии, комплектации и города доставки — Москва. Стоимость товара и условия продажи не являются публичной офертой.

Характеристики

Basic feauturies

Quantity of controlled axis 10pcs + 6pcs
Type of spring Compression / Tension / Torsion / Double torsion / Wire bending
Spring-forming machine variation Сamless machine

CNC

Spring coiling machine computer Windows based
CNC language Chinese / English

Processing parameters

Wire diameter 0.2mm — 2mm
Direction of coiling Right + Left
Spring diameter 40mm
Wire feeding speed 120m/min
Wire feed value 0.01mm — 10000mm

Wire feeder

Loading weight 200kg

Controlled axes

Sliders axis 7pcs x 0.4kW
Wire feed axis 1pcs x 2.7kW
Core axis 1pcs x 0.75kW
Free arm 1pcs x 0.4kW

Engines and power supply

Total motor power 6.6kW
Voltage 380V / 50Hz

Overall dimensions and weight

Weight 700kg
Overall length 1100mm
Overall width 800mm
Overall height 1550mm

Периферия

Wire feeders

JTC-200
JTC-200

Комплектация

Additional slider
Количество: 1 pcs
0.4 kW
Diamond needle files
Количество: 1 set
Pneumocylinder
Количество: 2 pcs
Pre-tension wire spool
Количество: 1 pcs
Probe
Количество: 3 pcs
Spinner
Количество: 1 pcs
0.4 kW
Tools box
Количество: 1 set
Инструмент и оснастка для навивки
Количество: 1 set
15°: 0.2mm / 0.3mm / 0.5mm / 0.7mm / 0.9mm / 1.1mm / 1.3mm / 1.5mm / 1.7mm / 2.0mm
