Machine tools and equipment / Bending and forming machinery / Wire forming machinery / Spring forming machines / 12-axis CNC spring forming machine ST28-12R
JOINT

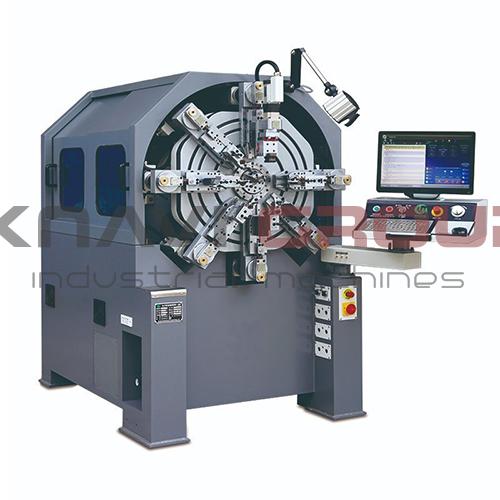

12-axis CNC spring forming machine ST28-12R

Серия: ST
Quantity of controlled axis 12pcs + 2pcs
Spring-forming machine variation Сamless machine
Wire diameter 0.6mm — 2.8mm
Wire feeding speed 120m/min

Цена и условия

5 673 576 RUB*
Условия доставки
ddp Москва
* Цена рассчитана на основе конфигурации оборудования, периферии, комплектации и города доставки — Москва. Стоимость товара и условия продажи не являются публичной офертой.

Характеристики

Basic feauturies

Quantity of controlled axis 12pcs + 2pcs
Type of spring Compression / Tension / Torsion / Double torsion / Wire bending
Spring-forming machine variation Сamless machine

CNC

Spring coiling machine computer Windows based
CNC language Chinese / English

Processing parameters

Wire diameter 0.6mm — 2.8mm
Direction of coiling Right + Left
Wire feeding speed 120m/min
Wire feed value 0.01mm — 10000mm

Wire feeder

Loading weight 200kg

Controlled axes

Sliders axis 7pcs x 0.75kW
Wire feed axis 1pcs x 2.7kW
Core axis 1pcs x 0.75kW
Wire rotary axis 1pcs x 2.7kW
Spinner 1pcs x 0.4kW
Free arm 1pcs x 0.4kW

Engines and power supply

Total motor power 12.6kW
Voltage 380V / 50Hz

Overall dimensions and weight

Weight 1500kg
Overall length 1500mm
Overall width 1250mm
Overall height 1800mm

Периферия

Wire feeders

JTC-200
JTC-200

Комплектация

Additional slider
Количество: 1 pcs
0.75 kW
Diamond needle files
Количество: 1 set
Pneumocylinder
Количество: 2 pcs
Probe
Количество: 1 pcs
Spinner
Количество: 1 pcs
0.4 kW
Tools box
Количество: 1 pcs
Инструмент и оснастка для навивки
Количество: 1 set
15°: 0.4mm / 0.6mm / 0.9mm / 1.1mm / 1.4mm / 1.7mm / 1.9mm / 2.2mm / 2.5mm / 2.8mm
