Machine tools and equipment / Metalworking machine tools / CNC machining centers / 5-Axis CNC Machining Center / 5-Axis CNC Machining Center D2-5AX
Hwacheon

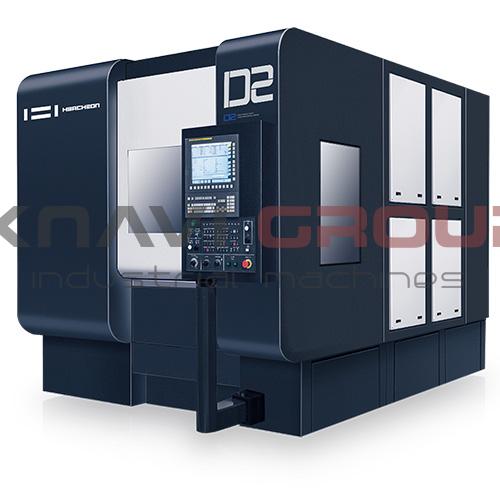

5-Axis CNC Machining Center D2-5AX

Серия: 5AX
Working table size 600mm
Max. weight of workpiece 500kg
Feed travels 650mm / 500mm / 500mm
A-axis Tilting Angle -30° ~ 110°
Rotation range of C-axis 360°

Основная конфигурация

Spindle speeds range
12000rpm
14000rpm
20000rpm
24000rpm
Tool magazine capacity
30pcs
40pcs
60pcs

Цена и условия

Цена по запросу

Характеристики

Working table

Working table size 600mm
T-slots 5pcs / 14mm / 80mm
Max. weight of workpiece 500kg

Feeds

Feed travels 650mm / 500mm / 500mm
A-axis Tilting Angle -30° ~ 110°
Rotation range of C-axis 360°
Rapid traverse 36000mm/min / 30000mm/min / 30000mm/min / 25rpm / 25rpm
Power of feed motors 7kW / 4kW / 4kW

Spindle

Spindle taper ISO40
Distance from vertical spindle nose to surface of working table 175mm / 675mm
Spindle speeds range
12000rpm
14000rpm
20000rpm
24000rpm
Spindle bore diameter
70mm
70mm
70mm
70mm
Lathe Spindle Nose
BBT-40
BBT-40
BBT-40
BBT-40
Spindle motor power
18.5kW / 37kW
22kW / 37kW
18.5kW / 37kW
18.5kW / 37kW

Automatic tool changer (ATC)

Max. tool diameter 130mm / 80mm
Max. tool lenght 300mm
Max. tool weight 8kg
Tool magazine capacity
30pcs
40pcs
60pcs

CNC

CNC model 0i-MF Plus

Cutting fluid

Water tank capacity 250L
Power of coolant pump motor 1.1kW

Engines and power supply

Total motor power 70kW
Compressed Air Supply 0.6MPa
Voltage 380V / 50Hz

Overall dimensions and weight

Weight 11500kg
Overall length 3700mm
Overall width 3523mm
Overall height 3610mm
