Machine tools and equipment / Bending and forming machinery / Wire forming machinery / Spring coiling machines / 6 axis spring coiling machine JTC 610
JOINT

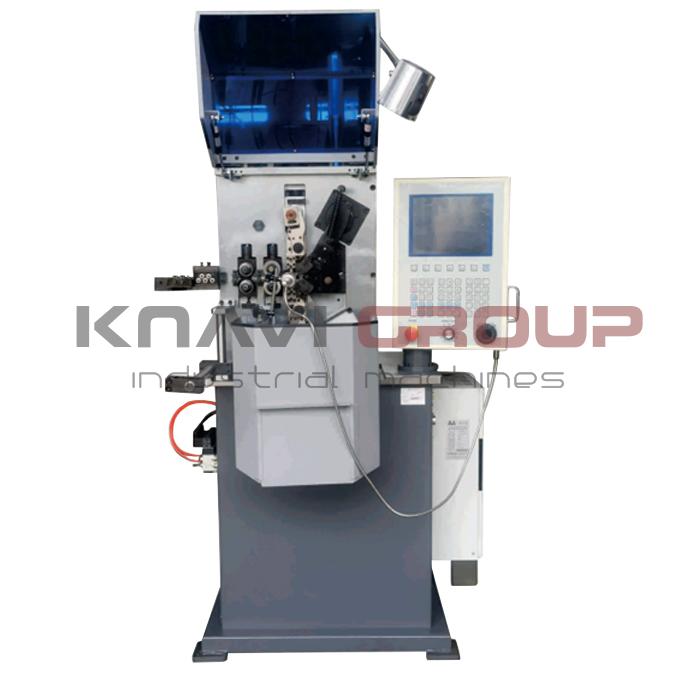

6 axis spring coiling machine JTC 610

Серия: JTC 6
Quantity of controlled axis 6pcs
Spring diameter 25mm
Wire diameter 0.15mm — 1mm
Wire feed value 0.01mm — 10000mm
Wire feeding speed 100m/min

Основная конфигурация

Spring coiling machine computer
ARCUCHI
Windows based
Interactive programming
No
Yes

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

Quantity of controlled axis 6pcs
Type of spring Compression / Torsion

CNC

CNC language Chinese / English
Spring coiling machine computer
ARCUCHI
Windows based
Interactive programming
No
Yes

Processing parameters

Spring diameter 25mm
Wire diameter 0.15mm — 1mm
Wire feed value 0.01mm — 10000mm
Wire feeding speed 100m/min
Direction of coiling Right + Left
Wire feeding wheel pressing mode Mechanical

Wire feeder

Loading weight 100kg

Controlled axes

Outer diameter control mode Two curves (individual motor control)
OD control axis 0.75kW
Arbor moving axis 0.4kW
Down-cut axis 1pcs x 0.4kW
Pitch axis 1pcs x 0.4kW
Wire feed axis 1pcs x 1.2kW
Up-cut axis 1pcs x 0.4kW

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC
Total motor power 3.55kW

Overall dimensions and weight

Weight 500kg
Overall length 1200mm
Overall width 800mm
Overall height 1600mm

Периферия

Spring length detector

CXYX-1
CXYX-1
Length detector (JOINT)
Length detector (JOINT)

Spring lenght sorting device

Spring lenght sorting device (JOINT)
Spring lenght sorting device (JOINT)

Комплектация

Diamond needle files
Количество: 1 set
Left-direction coiling knife rest
Manual lubrication of guides
Pneumocylinder
Количество: 1 pcs
Probe
Количество: 2 pcs
Right-direction coiling knife rest
Tools box
Инструмент и оснастка для навивки
Количество: 1 set
0.15mm / 0.2mm / 0.25mm / 0.3mm / 0.4mm / 0.5mm / 0.6mm / 0.7mm / 0.8mm / 0.9mm / 1.0mm
Лампа освещения рабочей зоны
