Machine tools and equipment / Bending and forming machinery / Wire forming machinery / Spring coiling machines / 6 axis spring coiling machine JTC 660
JOINT

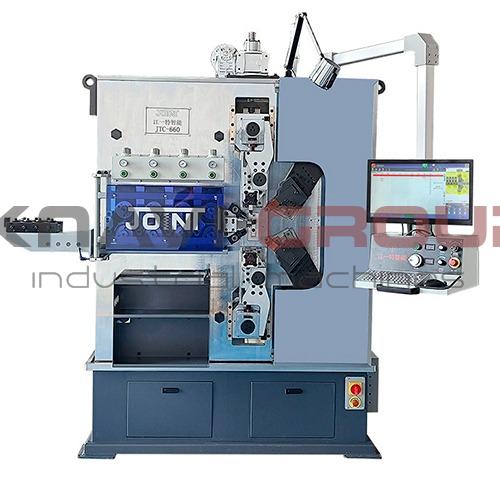

6 axis spring coiling machine JTC 660

Серия: JTC 6
Quantity of controlled axis 6pcs
Spring coiling machine computer Windows based
Wire diameter 2mm — 6mm
Wire feeding speed 70m/min

Основная конфигурация

Interactive programming
No
Yes

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

Quantity of controlled axis 6pcs
Type of spring Compression / Torsion

CNC

Spring coiling machine computer Windows based
CNC language Chinese / English
Interactive programming
No
Yes

Processing parameters

Spring diameter 120mm
Wire diameter 2mm — 6mm
Wire feed value 0.01mm — 10000mm
Wire feeding speed 70m/min
Direction of coiling Right + Left
Wire feeding wheel pressing mode Pneumatic

Wire feeder

Loading weight 1500kg

Controlled axes

OD control axis 4.5kW / 4.5kW
Pitch axis 1pcs x 2.7kW
Wire feed axis 1pcs x 15kW
Cutting axis 2.7kW / 2.7kW

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC
Total motor power 32.1kW

Overall dimensions and weight

Weight 4800kg
Overall length 1600mm
Overall width 2600mm
Overall height 2100mm

Периферия

Spring length detector

CXYX-1
CXYX-1

Wire feeders

JTC-1500
JTC-1500

Комплектация

Diamond needle files
Количество: 1 set
Manual lubrication of guides
Pneumocylinder
Количество: 1 pcs
Probe
Количество: 2 pcs
Tools box
Инструмент и оснастка для навивки
Количество: 1 set
2.5mm / 3.0mm / 3.5mm / 4.0mm / 4.5mm / 5.0mm / 5.5mm / 6.0mm
Лампа освещения рабочей зоны
