Machine tools and equipment / Bending and forming machinery / Wire forming machinery / Spring coiling machines / 9 axis spring coiling machine JTC 920
JOINT

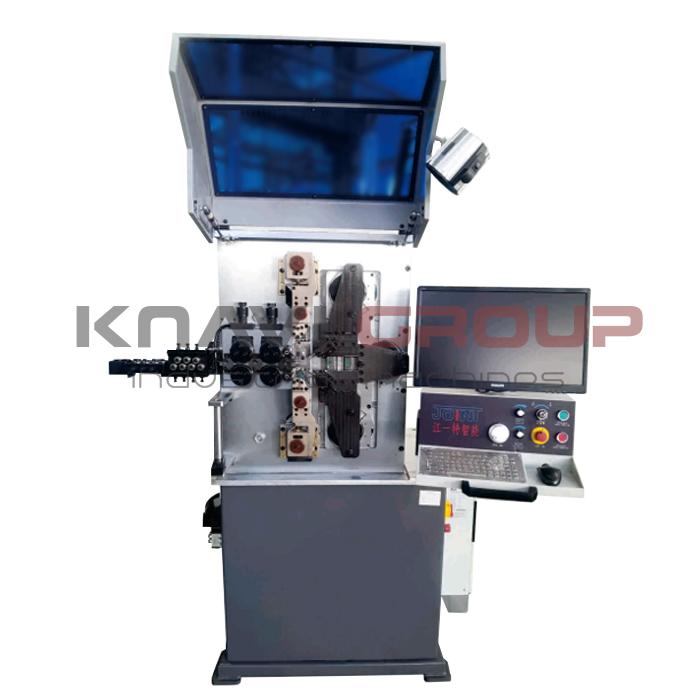

9 axis spring coiling machine JTC 920

Серия: JTC 9
Quantity of controlled axis 9pcs
Spring coiling machine computer Windows based
Spring diameter 45mm
Wire diameter 0.5mm — 2mm
Wire feed value 0.01mm — 10000mm
Wire feeding speed 100m/min

Основная конфигурация

Interactive programming
No
Yes

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

Quantity of controlled axis 9pcs
Type of spring Compression / Torsion

CNC

Spring coiling machine computer Windows based
CNC language Chinese / English
Interactive programming
No
Yes

Processing parameters

Spring diameter 45mm
Wire diameter 0.5mm — 2mm
Wire feed value 0.01mm — 10000mm
Wire feeding speed 100m/min
Direction of coiling Right + Left
Wire feeding wheel pressing mode Mechanical

Wire feeder

Loading weight 200kg

Controlled axes

OD control axis 1.2kW / 1.2kW / 1.2kW
Arbor moving axis 0.4kW / 1.2kW
Pitch axis 1pcs x 0.75kW
Wire feed axis 1pcs x 2.7kW
Cutting axis 0.75kW / 0.75kW

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC
Total motor power 10.15kW

Overall dimensions and weight

Weight 800kg

Периферия

Spring length detector

CXYX-1
CXYX-1

Wire feeders

JTC-200
JTC-200

Комплектация

Diamond needle files
Количество: 1 pcs
Manual lubrication of guides
Pneumocylinder
Количество: 1 pcs
Probe
Количество: 2 pcs
Tools box
Инструмент и оснастка для навивки
Количество: 1 set
0.5mm / 0.6mm / 0.7mm / 0.8mm / 1.0 mm / 1.2 mm / 1.4mm / 1.6mm / 1.8mm / 2.0mm
Лампа освещения рабочей зоны
