JOINT

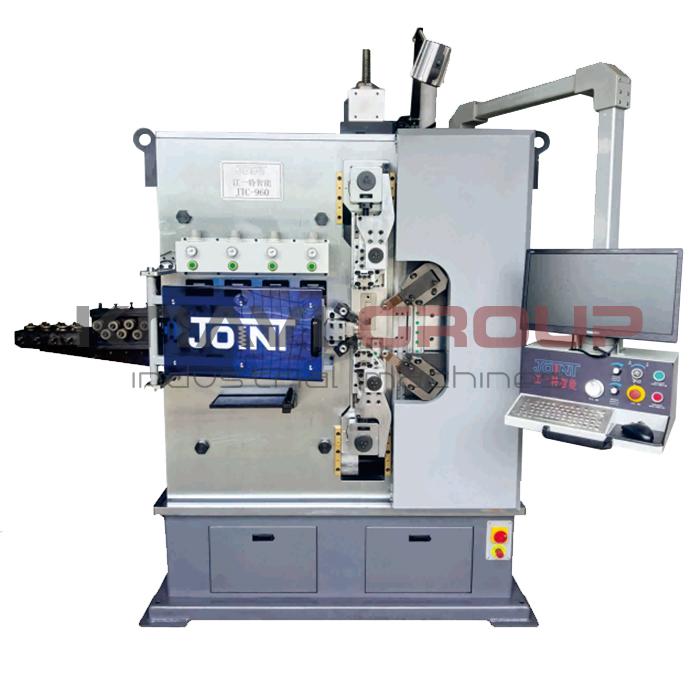

9 axis spring coiling machine JTC 960

Серия: JTC 9

Quantity of controlled axis 9pcs

Spring coiling machine computer Windows based

Spring diameter 120mm

Wire diameter 2mm — 6mm

Wire feed value 0.01mm — 10000mm

Wire feeding speed 70m/min

Основная конфигурация

Interactive programming

Yes

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

Quantity of controlled axis 9pcs

Type of spring Compression / Torsion

CNC

Spring coiling machine computer Windows based

CNC language Chinese / English

Interactive programming

Yes

Processing parameters

Spring diameter 120mm

Wire diameter 2mm — 6mm

Wire feed value 0.01mm — 10000mm

Wire feeding speed 70m/min

Direction of coiling Right + Left

Wire feeder

Loading weight 1500kg

Controlled axes

OD control axis 4.5kW / 4.5kW / 4.4kW

Arbor moving axis 1.2kW / 2.7kW

Pitch axis 1pcs x 2.7kW

Wire feed axis 1pcs x 15kW

Cutting axis 2.7kW / 2.7kW

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC

Total motor power 40.4kW

Overall dimensions and weight

Weight 4800kg

Overall length 1600mm

Overall width 2600mm

Overall height 2100mm

Периферия

Spring length detector

CXYX-1

Wire feeders

JTC-1500

Комплектация

Diamond needle files

Количество: 1 set

Manual lubrication of guides

Pneumocylinder

Количество: 1 pcs

Probe

Количество: 2 pcs

Tools box

Инструмент и оснастка для навивки

Количество: 1 set

2.5mm / 3.0mm / 3.5mm / 4.0mm / 4.5mm / 5.0mm / 5.5mm / 6.0mm

Лампа освещения рабочей зоны
