SONLY

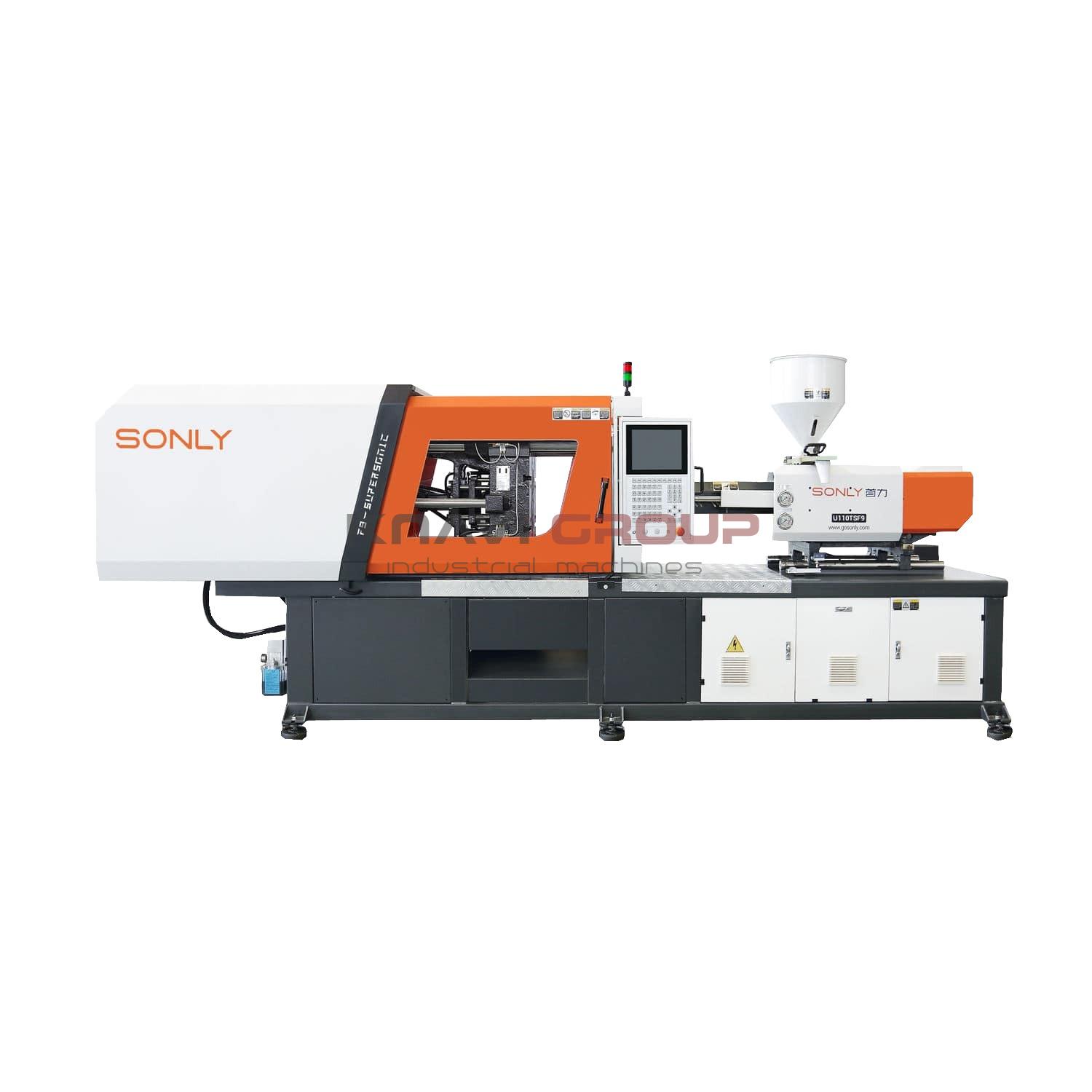

Injection molding machine U110TSF9

Серия: F9

Machine drive Servo-Hydraulic (Hybrid)

Clamping mechanism Toggle system

Clamping force 1100kN

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

Machine drive Servo-Hydraulic (Hybrid)

Clamping mechanism Toggle system

Injection Unit

Screw diameter

32mm

35mm

38mm

Screw ratio

24.1L/D

22L/D

20.3L/D

Max. rotational speed

270rpm

Theoretical shot volume

134.2cm³

160.6cm³

189cm³

Injection pressure

222.1MPa

185.7MPa

157.5MPa

Injection weight

122.2g / 4.3oz

146.1g / 5.1oz

172g / 6oz

Linear injection rate

140mm/s

Clamping unit

Clamping force 1100kN

Clamping stroke 325mm

Thickness of mould 120mm / 360mm

Space between tie bars 405mm x 360mm

Ejector stroke 100mm

Ejector force 41kN

Other

Die Hole Diameter 125mm

Motor power 15kW

Max. pump pressure 17.5MPa

Heating power 10kW

Oil tank capacity 125L

Overall dimensions and weight

Weight 3100kg

Overall length 4200mm

Overall width 1110mm

Overall height 1830mm
