SONLY

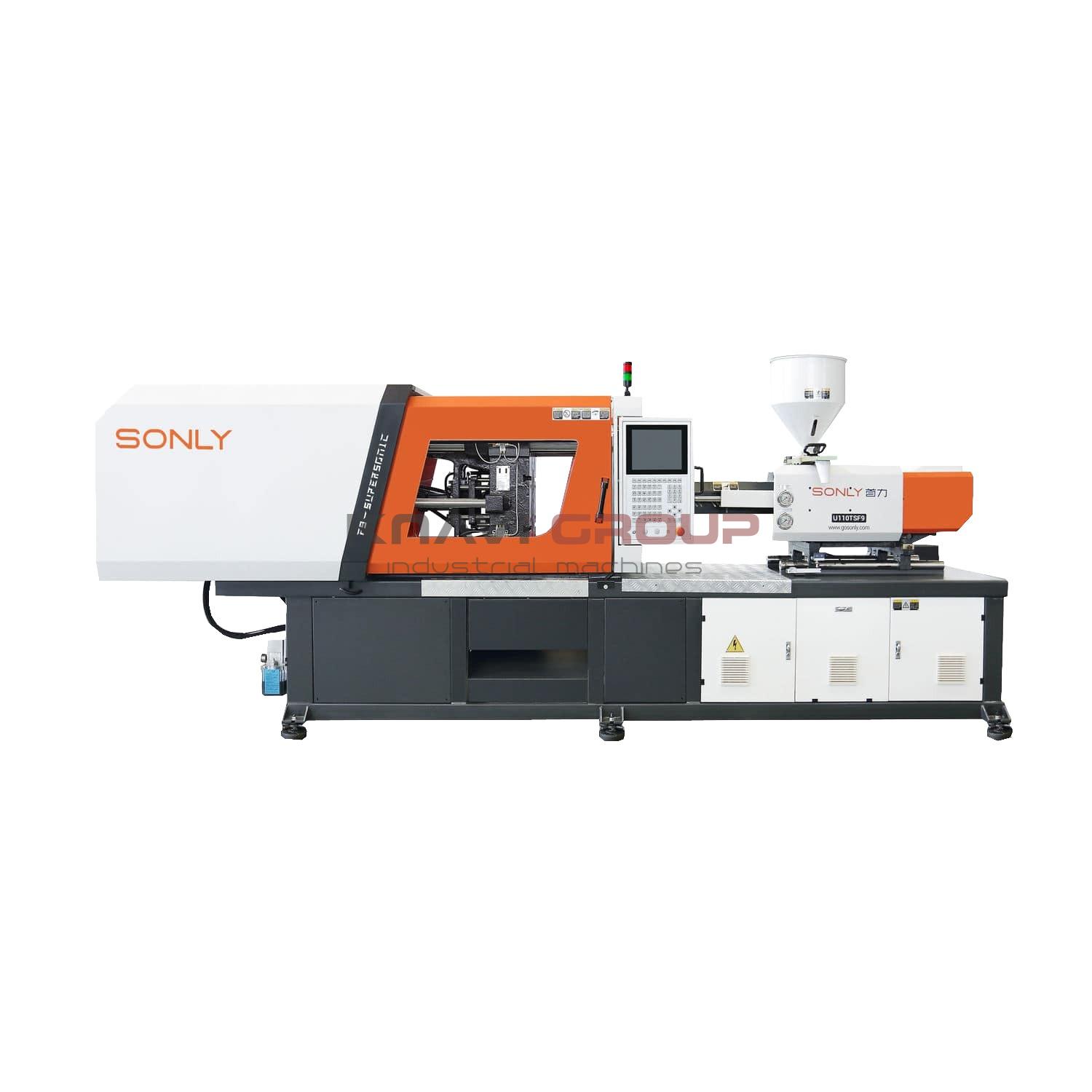

Injection molding machine U230TSF9

Серия: F9

Machine drive Servo-Hydraulic (Hybrid)

Clamping mechanism Toggle system

Clamping force 2300kN

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

Machine drive Servo-Hydraulic (Hybrid)

Clamping mechanism Toggle system

Injection Unit

Screw diameter

45mm

50mm

55mm

Screw ratio

24.4L/D

22L/D

20L/D

Max. rotational speed

230rpm

140rpm

Theoretical shot volume

468.2cm³

578.9cm³

700.5cm³

Injection pressure

226.8MPa

183.7MPa

151.8MPa

Injection weight

425.7g / 15oz

526.8g

637.5g / 22.4oz

Linear injection rate

140mm/s

Clamping unit

Clamping force 2300kN

Clamping stroke 520mm

Thickness of mould 20mm / 530mm

Space between tie bars 565mm x 520mm

Ejector stroke 150mm

Ejector force 77kN

Other

Die Hole Diameter 160mm

Motor power 37kW

Max. pump pressure 17.5MPa

Heating power 16.3kW

Oil tank capacity 230L

Overall dimensions and weight

Weight 3700kg

Overall length 5900mm

Overall width 1360mm

Overall height 2150mm
