SONLY

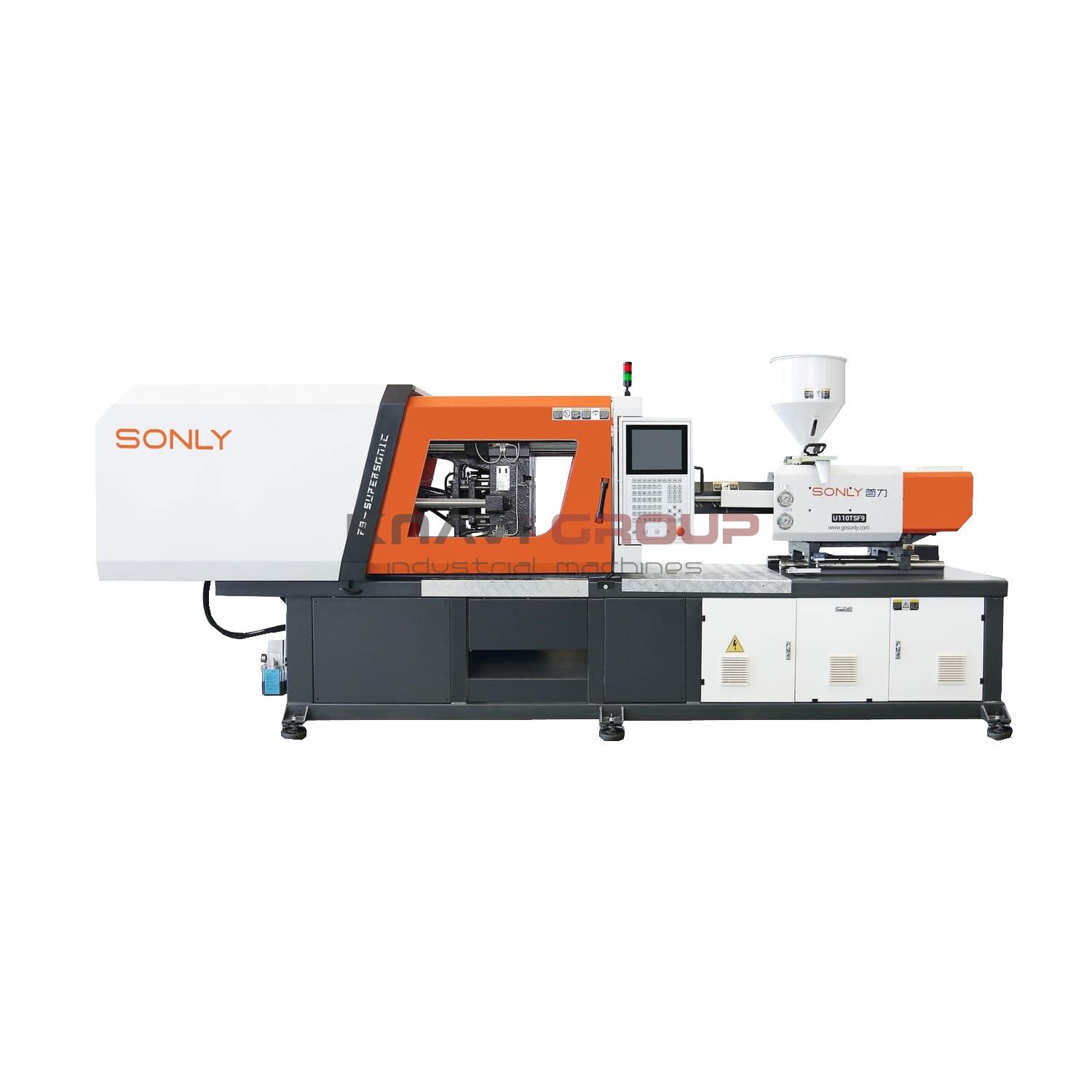

Injection molding machine U180TSF9

Серия: F9

Machine drive Servo-Hydraulic (Hybrid)

Clamping mechanism Toggle system

Clamping force 1800kN

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

Machine drive Servo-Hydraulic (Hybrid)

Clamping mechanism Toggle system

Injection Unit

Screw diameter

40mm

45mm

48mm

Screw ratio

24.8L/D

22L/D

20.6L/D

Max. rotational speed

250rpm

Theoretical shot volume

314cm³

397.4cm³

452.2cm³

Injection pressure

210MPa

165.9MPa

145.8MPa

Injection weight

285.7g / 10oz

361.6g / 12.7oz

411.5g / 14.4oz

Linear injection rate

180mm/s

Clamping unit

Clamping force 1800kN

Clamping stroke 430mm

Thickness of mould 170mm / 500mm

Space between tie bars 510mm x 467mm

Ejector stroke 130mm

Ejector force 41kN

Other

Die Hole Diameter 160mm

Motor power 37kW

Max. pump pressure 17.5MPa

Heating power 13.2kW

Oil tank capacity 210L

Overall dimensions and weight

Weight 3700kg

Overall length 5200mm

Overall width 1260mm

Overall height 2030mm
