Machine tools and equipment / Metalworking machine tools / CNC machining centers / CNC Turning Centers / Turning center CTXY72
STS

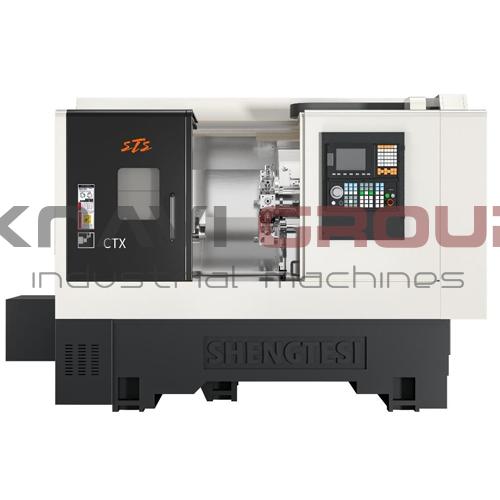

Turning center CTXY72

Серия: CTX
Max. swing diameter over bed 740mm
Spindle speeds range 3000rpm
Spindle motor power 15kW

Цена и условия

Цена по запросу

Характеристики

Basic feauturies

CNC lathe type Slant-bed CNC lathe / 30°
Y-axis Presence

Capability

Max. swing diameter over bed 740mm

Main spindle

Spindle speeds range 3000rpm
Lathe Spindle Nose A2-8
Spindle bore diameter 85mm
Bar Size 71mm
Spindle motor power 15kW

Feeds

X-Axis travel 200mm
Z-Axis travel 550mm
Y-Axis travel 45mm
Rapid traverse 25000mm/min / 25000mm/min
Repeatability accuracy 0.006mm / 0.006mm / 0.006mm

Feed motor

Power of feed motors 1.8kW

Tools

Tooling Live tooling
Tools quantity 12pcs
Tool holder interface BMT55

Tailstock

Tailstock stroke 500mm

Engines and power supply

Voltage 380V / 50Hz / Three phase / AC

Overall dimensions and weight

Weight 4600kg
Overall length 3039mm
Overall width 1955mm
Overall height 2038mm
